Description

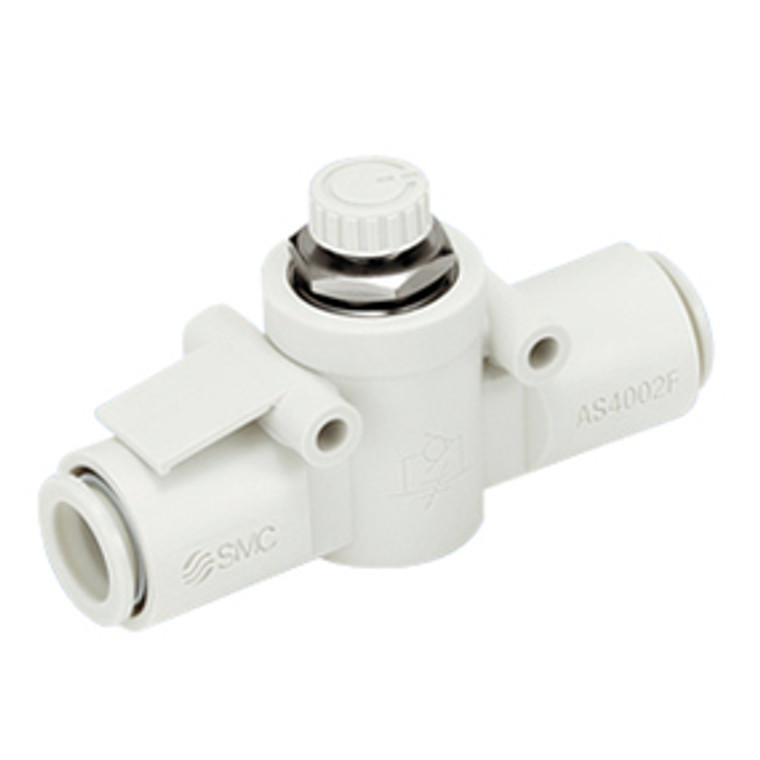

smc series as*002f, in-line type, compact speed controllers with built in one-touch fittings minimize installation time, reduce mounting height, and enable a more compact machine design. these speed controls can be mounted in 4 variations (direct mounting, l-bracket mounting, din rail mounting and holder mounting). available tube sizes range from 3.2mm to 12mm od (metric) and 1/8 to 1/2 od (inch). the as*002f speed control series is rohs compliant.
- in-line, compact, one-touch fittings
- maximum operating pressure: 1 mpa
- applicable tube material: nylon, soft nylon, polyurethane
- body size: m3, m5, 1/8, 1/4, 3/8 and 1/2
