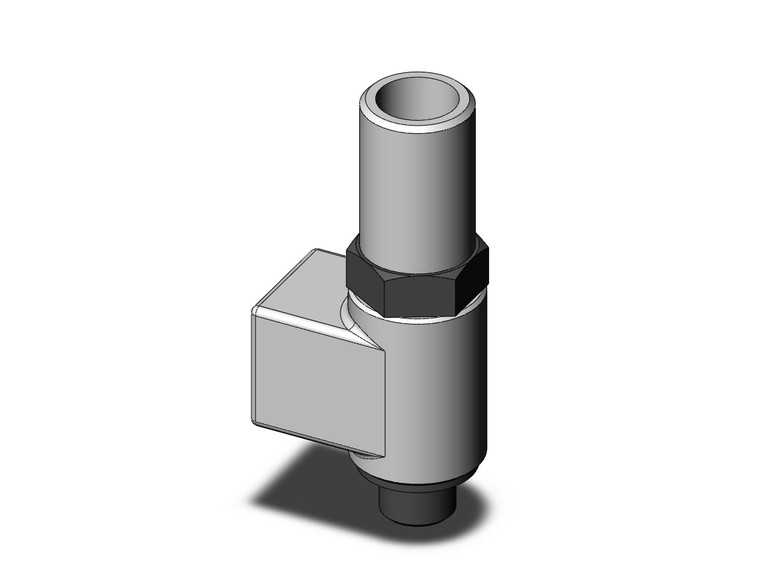

SMC AS1210-M5-D Flow Control
- SKU:
- AS1210-M5-D
- Condition:
- New
- Body Size:
- 1 (M5 Basis)
- Control Method:
- 1 (Meter-in)
- Thread:
- R(PT)/Rc(PT)/Meter Thread (M5)
- Port Size:
- M5X0.8
- Sealant:
- None
Description

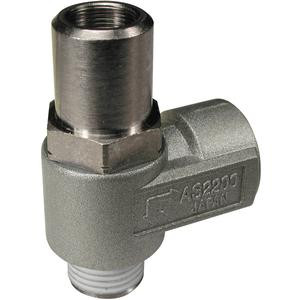

AS-D, Speed Controller, Metal Body Elbow Style, Flat Head Screwdriver Adjusting
Lightweight, compact, and precision control make these speed controls the right choice for many heavy-duty applications. These speed controls are offered with in-line and elbow construction to give the widest choice to your unique application. Locking nuts are included as standard as well as simplified mounting. Thread sizes range from M3 to 2 and are available in both inch (NPT) and metric R/Rc(PT)
-
- Flow rate can be adjusted with a flat head screwdriver- Prevents inadvertent manual operation
- Meter-out and meter-in types can be visually distinguishedby the flow direction symbol on the metal body
- On standard models, all brass parts are electroless nickel plated
- Available in PT, NPT or G(PF) port sizes
-
