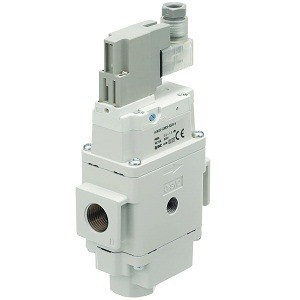

SMC AV5000-N06-5DZ-Z-A Soft Start-up Valve
SMC
$193.25
The SMC AV5000-N06-5DZ-Z-A Soft Start-up Valve is engineered for precision control in pneumatic systems, ensuring a smooth and gradual increase in pressure to protect sensitive equipment from sudden surges. Priced at $193.25, this valve is an essential component for maintaining system integrity and prolonging the lifespan of your machinery.
Key features include a robust construction designed to withstand demanding industrial environments, and a compact design that facilitates easy integration into existing systems. The valve operates efficiently with a nominal size of 3/4 inch, making it suitable for a wide range of applications.
This model is equipped with a manual override function, providing flexibility and control during maintenance or emergency situations. The SMC AV5000-N06-5DZ-Z-A is compatible with various pneumatic systems, offering a maximum operating pressure of 1.0 MPa and a temperature range of -5 to 60°C, ensuring reliable performance under diverse conditions.
Optimize your pneumatic system's performance with the SMC AV5000-N06-5DZ-Z-A Soft Start-up Valve, a cost-effective solution for enhancing operational safety and efficiency. Ideal for engineers and manufacturers seeking to improve system reliability and reduce downtime.
- Body Size:
- 50
- Thread Type:
- NPT
- Port Size 1(P),2(A):
- 3/4
- Option a:
- Without Mounting Option
- Option b:
- Without Pressure Gauge
- Option c:
- Without Silencer
- Coil Rated Voltage:
- 24 VDC
- Electrical Entry:
- Type D (DIN Terminal/With Connector)
- Light/Surge Voltage Suppressor:
- With Light/Surge Voltage Suppressor
- Manual Override:
- Non-locking Push Type
- Flow Direction:
- Flow Direction:Left To Right
- Pressure Unit:
- Name Plate And Pressure Gauge In Imperial Units: psi
