Additional Information
Manufacturer Part #: |

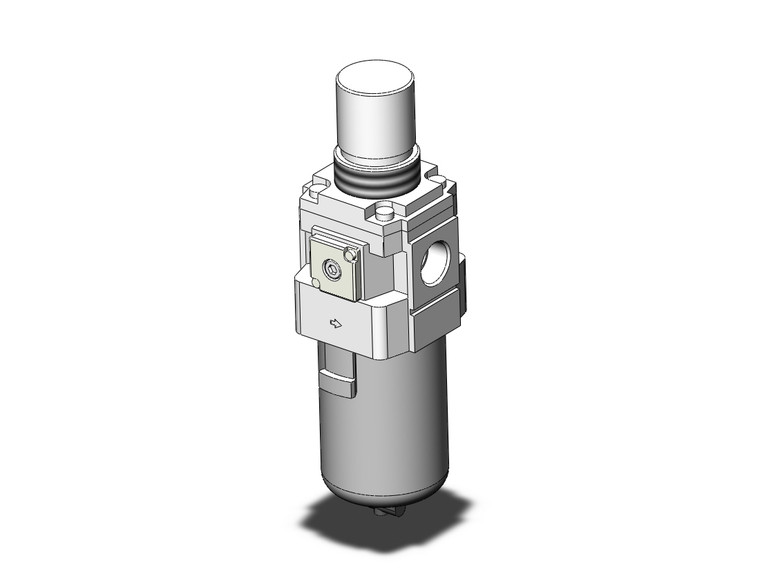

AW40-04-B |
Drain Cock with Barb Fitting: |
None |
Regulator Type: |
Filter Regulator |
Drain Port: |
w/Drain Cock |
Port Size: |
1/2 |
Body Size: |
IR1000 |
Made to Order: |
Standard |
Option: |
w/o Mounting Option |
Thread Type: |
Rc |
Back Flow: |
W/O Backflow Function |
Set Pressure: |
0.05 to 0.85 MPa Setting |
Bowl: |
Polycarbonate Bowl |
Bowl Guard: |
None |
Exhaust Mechanism: |
Relieving Type |
Flow Direction: |
Left to Right |
Pressure Units: |
Unit on Product Label: MPa, Pressure Gauge in SI Units: MPa |
