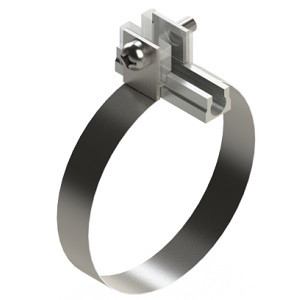

SMC BM5-025 Auto Switch Mounting Bracket Assembly
SMC
$5.30
Auto Switch Mounting Bracket Assembly
The SMC BM5-025 Auto Switch Mounting Bracket Assembly is designed for precision sensor integration on pneumatic cylinders with 25 mm bore sizes. Engineered for reliability and secure attachment, this bracket set includes a mounting band, switch bracket, switch holder, and installation screw, all optimized for robust performance in industrial automation environments.
This assembly enables fast and accurate mounting of SMC auto switches (such as D-M9, D-A9 series) around the cylinder tube, ensuring stable sensor positioning and repeatable actuation feedback. The modular design facilitates easy adjustment and repositioning while maintaining high resistance to vibration and loosening. Key features include corrosion-resistant components, precise alignment for switch engagement, and support for common SMC sensor models used in machine automation.
Engineers benefit from quick installation, consistent sensor support, and reliable operation suited to high-cycle pneumatic systems in manufacturing and process control. The BM5-025 is ideal for new builds and retrofits requiring dependable sensing solutions on SMC cylinders.
