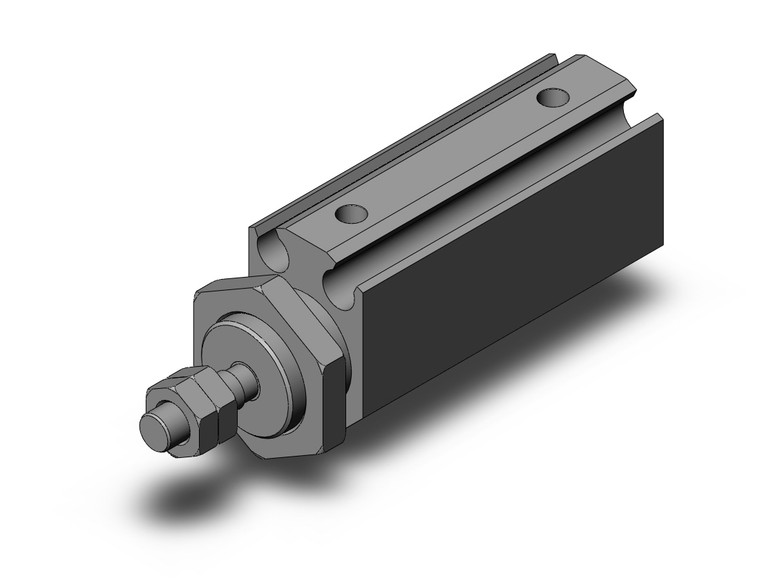

SMC CDJP2B10-15D Round Body Cylinder
- SKU:
- CDJP2B10-15D
- Condition:
- New
- Manufacturer:
- SMC
- Manufacturer Part #:
- CDJP2B10-15D
- Actuator Accessory Type:
- Pin Cylinder
- Number of Cores:
- 2 pcs. (Or None in the Case of No Switch)
- Option:
- None
- Mounting:
- Basic
- Bore Size:
- Ø10 mm
- Lead or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Stroke:
- 15mm
- Auto Switch:
- No Switch
- Magnet:
- Built-in Magnet
- Rod End Thread:
- With Thread
- Rod End Bracket:
- With Thread
Description
C(D)JP2, Pin Cylinder, Double Acting, Single Rod
Available in four bore size options, series CJP2 includes a tiny, but powerful, 4mm bore size option making it the smallest double acting pin cylinder around. 6, 10 and 16mm bore sizes complete the range, all featuring extruded aluminium bodies, making them not only compact, but extremely light weight. Series CJP2 is auto switch capable and other options include rubber bumper cushions, and made to order models including both heat and cold resistant types. Mounting possibilities include basic/panel, flange, foot, clevis and trunnion options.
- The body material has been changed from brass to aluminium, achieving impressive weight reduction.- The overall length of the cylinder has been reduced resulting in an extremly compact cylinder.
- Solid state auto-switches can also be mounted now.
- Longer stroke options are now available.
- Internal rubber bumpers provide quieter operation and longer life (up to 5 million cycles).
