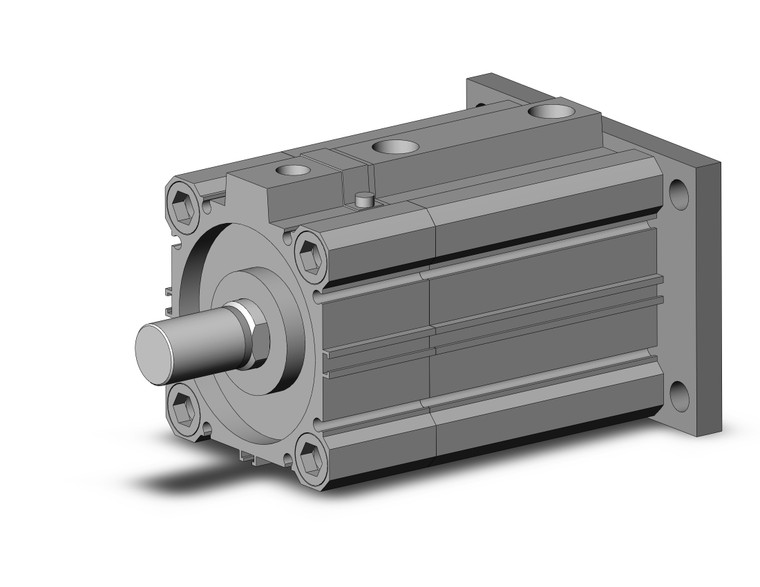

SMC CDLQG63-35DCM-F-M9BWSDPC CLQ Series Compact Cylinder With Lock Double Acting,Single Rod
SKU:
CDLQG63-35DCM-F-M9BWSDPC
UPC:
MPN:
CDLQG63-35DCM-F-M9BWSDPC
Condition:
New
With Auto Switch(Built-in Magnet):
With Auto Switch
Mounting Style:
Head Flange Style
Bore Size:
Bore Size 63 mm
Port Thread Type:
Rc,M(?20,?25)
Cylinder Stroke:
Standard Stroke 35 mm
Body Option:
With Rubber Bumper And Rod End Male Thread
Locking Direction:
Extension Locking
Auto Switch:
2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
CLQ Series Compact Cylinder With Lock Double Acting,Single RodLocking cylinder ideal for drop prevention when the air supply is shut off. (Single-directional lock);With auto switch (Series CDLQ: CDLQ)
