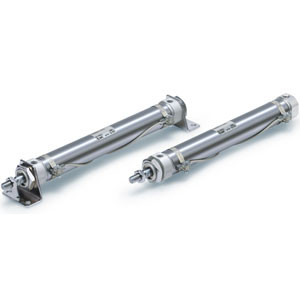

The SMC CDM2B40-100Z CM2-Z Series Air Cylinder is engineered for precision and reliability in demanding industrial applications. This robust pneumatic actuator features a 40mm bore and a 100mm stroke, making it ideal for a wide range of automation tasks. Designed with a female rod end as standard, it facilitates seamless integration into existing systems.
Engineers will appreciate the ease of fine adjustment for the auto switch position, ensuring optimal performance and adaptability in dynamic environments. The inclusion of single clevis and trunnion pivot brackets enhances the cylinder's versatility, allowing for flexible mounting options without the need for additional components.
For streamlined procurement and installation, part numbers with rod end bracket and/or pivot bracket are available, eliminating the necessity to order these components separately. The CDM2-Z Series is compatible with a variety of auto switch models, including CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, and CDM2RK, providing further customization to meet specific operational requirements.
This air cylinder is a testament to SMC's commitment to quality and innovation, offering a reliable solution for engineers and manufacturing professionals seeking efficiency and precision in their pneumatic systems.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Type:
- Pneumatic
- Mounting Style:
- Basic (Double-side Bossed)
- Bore Size:
- Bore Size 40 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 100 mm
- Suffix For Cylinder:
- Rubber Cushion,Rod End Male Thread,Without Rod Boot
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- Rubber Cushion,Rod End Male Thread,Without Rod Boot
- Pivot Bracket:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
