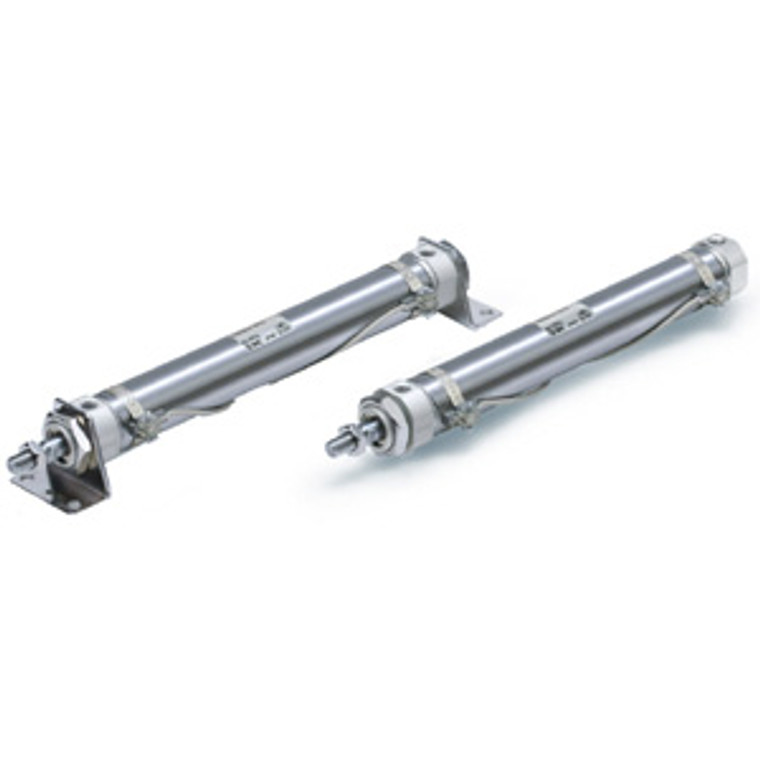

SMC CDM2WB20TN-75AZ-M9B CM2W-Z Series Air Cylinder
SMC
$151.05
The CDM2WB20TN-75AZ-M9B is a precision-engineered pneumatic cylinder designed for high-performance industrial applications. This double-acting cylinder features a 20mm bore and a 75mm stroke, making it ideal for tasks requiring precise linear motion control. Constructed with a robust aluminum body, it ensures durability and resistance to corrosion, even in demanding environments.
Equipped with a magnetic piston, the CDM2WB20TN-75AZ-M9B allows for accurate position sensing, enhancing automation capabilities. The cylinder is compatible with a wide range of sensors, providing flexibility in system integration. Its compact design facilitates easy installation in space-constrained setups, while the adjustable cushioning at both ends ensures smooth operation and reduces impact noise.
The CDM2WB20TN-75AZ-M9B is engineered to operate efficiently under varying pressure conditions, with a maximum operating pressure of 1.0 MPa. It is suitable for use in automated assembly lines, material handling systems, and other industrial machinery where reliability and precision are paramount.
Optimize your manufacturing processes with the CDM2WB20TN-75AZ-M9B pneumatic cylinder, a solution that combines advanced engineering with practical functionality.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Type:
- Pneumatic
- Mounting Style:
- Basic (Double-side Bossed)
- Bore Size:
- Bore Size 20 mm
- Port Thread Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 75 mm
- Cushion:
- Air Cushion
- Rod And Thread:
- Rod End Male Thread
- Rod Boot:
- None
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
