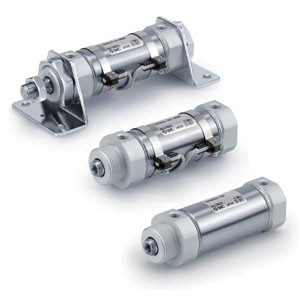

SMC CDM3F20-300-M9PL-C CM3 Series Air Cylinder Short Type Standard

SMC CDM3F20-300-M9PL-C CM3 Series Air Cylinder Short Type Standard

SMC
SKU:
CDM3F20-300-M9PL-C
Availability:
Contact us to confirm availability and lead times.
$161.40
Condition:
New
Current Stock:
Description

CM3 Series Air Cylinder Short Type Standard

  • Up to 66 mm shorter (total length), up to 21% lighter (weight); (compared to the CM2 series);
  • Female rod end available as standard;
  • With auto switch (Series CDM3: CDM3)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Rod Side Flange Style
    Bore Size:
    Bore Size 20 mm
    Cylinder Stroke:
    Standard Stroke 300 mm
    Rod End Thread:
    Male Thread
    Auto Switch:
    Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Auto Switch Mounting Bracket:
    Auto Switch Mounting Bracket
