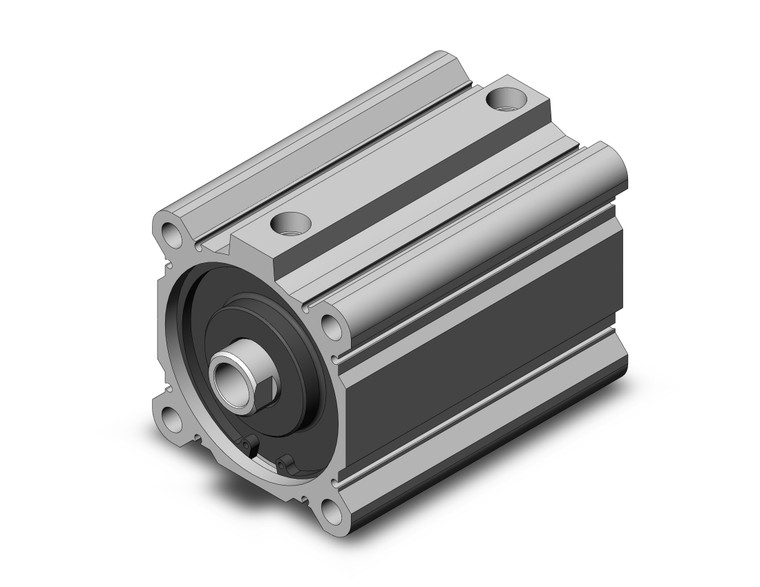

SMC CDQ2A100-100DCZ CQ2 Z Series Compact Cylinder
SMC
$180.80
The SMC CDQ2A100-100DCZ CQ2 Z Series Compact Cylinder is engineered for precision and efficiency in space-constrained applications. This advanced pneumatic actuator is part of the CQ2 Z Series, featuring a newly expanded size range of 4, 6, and 10, with a comprehensive lineup extending from 4 to 200. Designed with a compact body, this cylinder is ideal for applications where space is at a premium.
Engineers will appreciate the innovative design that allows for the mounting of small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring versatile installation options without any projection of the auto switch. The cylinder's weight has been optimized, achieving a reduction of 5 to 13% compared to the previous CQ2 series, enhancing performance without compromising on strength or durability.
The CDQ2A100-100DCZ model includes added pivot brackets for double clevis and compact type foot brackets, streamlining the installation process. Part numbers with rod end brackets and/or mounting bolts are available, eliminating the need for separate bracket orders, thus simplifying procurement and assembly.
This compact cylinder is compatible with a range of auto switch series, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, offering flexibility and adaptability to meet diverse application requirements. The SMC CDQ2A100-100DCZ is the optimal choice for engineers seeking a reliable, space-efficient solution in pneumatic systems.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 100 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 100 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- With Rubber Bumper
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
