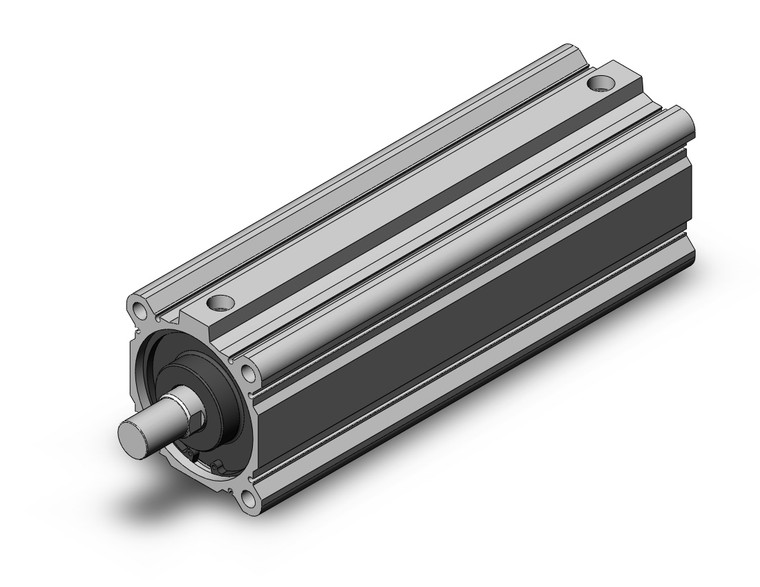

SMC CDQ2A100-300DCMZ CQ2 Z Series Compact Cylinder

The SMC CDQ2A100-300DCMZ CQ2 Z Series Compact Cylinder is engineered for precision and efficiency in space-constrained environments. This advanced pneumatic actuator is part of the CQ2 Z Series, renowned for its compact design and enhanced functionality. With newly added sizes of 4, 6, and 10, the cylinder offers a comprehensive range from 4 to 200, catering to diverse application needs. Designed with a space-saving profile, the CQ2 Z Series allows for the mounting of small auto switches on up to four surfaces, with two surfaces available for sizes 12 to 25. This feature ensures seamless integration into automated systems without the projection of auto switches, maintaining a streamlined appearance and function. The cylinder's weight has been optimized, achieving a reduction of 5 to 13% compared to previous CQ2 series models, enhancing its suitability for dynamic applications where weight is a critical factor. The inclusion of pivot brackets for double clevis and compact type foot brackets further extends its versatility, allowing for flexible mounting options. For added convenience, part numbers with rod end brackets and/or mounting bolts are available, eliminating the need for separate bracket orders. The cylinder is compatible with a range of auto switch series, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, ensuring adaptability to various control systems. This compact cylinder is ideal for engineers and manufacturing professionals seeking reliable, space-efficient solutions for automation and motion control applications. Its robust design and comprehensive feature set make it a valuable component in any industrial setting.
