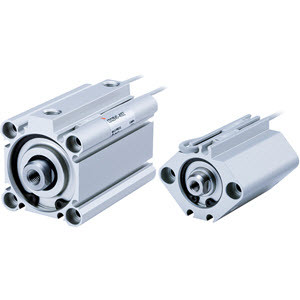

SMC CDQ2A100-30DCZ CQ2 Z Series Compact Cylinder

The SMC CDQ2A100-30DCZ CQ2 Z Series Compact Cylinder is engineered for precision and efficiency in space-constrained environments. This advanced pneumatic actuator is part of the CQ2 Z Series, featuring a newly expanded size range of 4, 6, and 10, extending up to 200, to accommodate diverse application needs. Its compact design is optimized for space-saving installations, making it ideal for integration into complex machinery where space is at a premium. Engineered with versatility in mind, the cylinder allows for the mounting of small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring seamless integration without any protrusion. This feature enhances the cylinder's adaptability in automated systems, providing engineers with the flexibility to design more efficient and streamlined operations. The CDQ2A100-30DCZ is constructed with a focus on weight reduction, achieving a 5 to 13% decrease compared to the previous CQ2 series, which contributes to improved system dynamics and reduced energy consumption. The inclusion of pivot brackets for double clevis and compact type foot brackets further enhances its mounting versatility, allowing for a wide range of installation configurations. For added convenience, part numbers with rod end brackets and/or mounting bolts are available, eliminating the need for separate bracket orders and simplifying the procurement process. The cylinder is compatible with a variety of auto switch options, including Series CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, providing comprehensive solutions for automated control systems. This compact cylinder is an ideal choice for engineers and manufacturing professionals seeking a reliable, space-efficient, and adaptable pneumatic solution for their automation needs.
