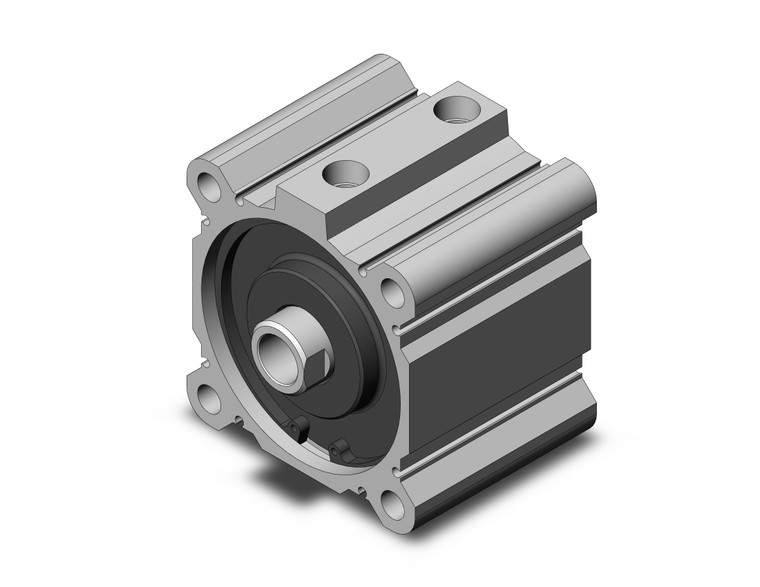

SMC CDQ2A100-30DZ CQ2 Z Series Compact Cylinder

The SMC CDQ2A100-30DZ CQ2 Z Series Compact Cylinder is engineered for precision and efficiency in space-constrained applications. This advanced pneumatic actuator is part of the CQ2 Z Series, renowned for its compact design and enhanced functionality. The cylinder is available in sizes ranging from 4 to 200, with new additions in sizes 4, 6, and 10, offering a versatile solution for various industrial needs. Designed with a space-saving profile, the CQ2 Z Series allows for the mounting of small auto switches on up to four surfaces, with two surfaces available for sizes 12 to 25. This feature ensures seamless integration into complex systems without the need for additional space. The absence of auto switch projections further enhances its compactness, making it ideal for tight installations. The cylinder's weight has been reduced by 5 to 13% compared to the existing CQ2 series, contributing to overall system efficiency and ease of handling. Engineers will appreciate the added pivot brackets for double clevis and compact type foot brackets, which simplify installation and maintenance. Additionally, part numbers with rod end brackets and/or mounting bolts are available, eliminating the need to order these components separately. The SMC CDQ2A100-30DZ is compatible with a range of auto switch series, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, providing flexibility and adaptability to meet specific application requirements. This compact cylinder is an optimal choice for engineers seeking reliable performance and streamlined design in their pneumatic systems.
