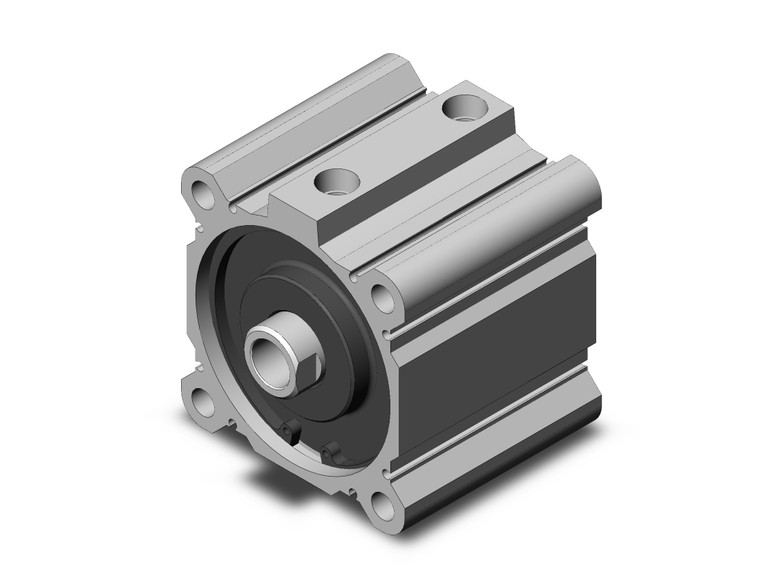

SMC CDQ2A100-40DZ CQ2 Z Series Compact Cylinder
SMC
$147.35
The SMC CDQ2A100-40DZ CQ2 Z Series Compact Cylinder is engineered for precision and efficiency in space-constrained environments. This advanced pneumatic actuator is part of the CQ2 Z Series, featuring newly added sizes of 4, 6, and 10, expanding the lineup from 4 to 200. Designed with a compact body, this cylinder is ideal for applications where space is at a premium.
Engineers will appreciate the innovative design that allows for the mounting of small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring seamless integration into existing systems without any protrusion. The cylinder's weight has been optimized, achieving a reduction of 5 to 13% compared to the previous CQ2 series, enhancing performance without compromising on strength or durability.
The CDQ2A100-40DZ model includes added pivot brackets for double clevis and compact type foot brackets, providing versatile mounting options. Part numbers with rod end brackets and/or mounting bolts are available, eliminating the need for separate bracket orders, thus streamlining the procurement process.
This model is compatible with a range of auto switches, including Series CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, offering flexibility and adaptability to various industrial applications. The SMC CDQ2A100-40DZ is the epitome of compact efficiency, designed to meet the rigorous demands of modern engineering and manufacturing environments.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 100 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 40 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
