SMC

SMC CDQ2A12-15DZ-M9BA CQ2 Z Series Compact Cylinder

(No reviews yet) Write a Review
SKU:
CDQ2A12-15DZ-M9BA
MPN:
CDQ2A12-15DZ-M9BA
Condition:
New
Built-in Magnet:
Built-in Magnet
Mounting Style:
Both Ends Tapped Style
Type:
Pneumatic
Bore Size:
Bore Size 12 mm
Port Thread Type:
Rc/M Thread
Cylinder Stroke:
Standard Stroke 15 mm
Dual Stroke Mark:
Without Two Stroke Mark
Cylinder Stroke 2:
Without Cylinder Stroke 2
Body Option:
Standard (Rod End Female Thread)
Auto Switch Mounting Groove:
12- 25 2 Sides/ 32- 100 4 Sides
Mounting Bolt:
None
Rod End Bracket:
None
Auto Switch:
Water Resistant 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Standard

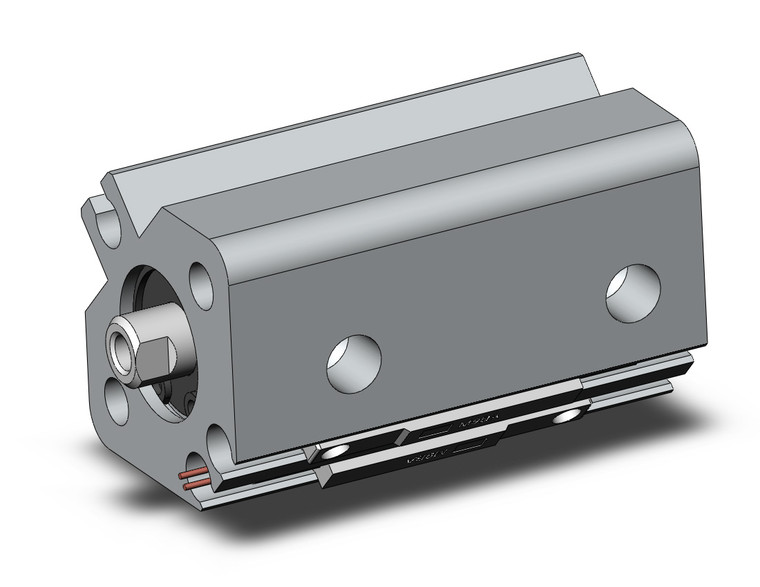

  • SMC CDQ2A12-15DZ-M9BA Compact Cylinder, Cq2-Z
  • SMC CDQ2A12-15DZ-M9BA CQ2 Z Series Compact Cylinder
$127.65

Description

CQ2 Z Series Compact Cylinder

  • Sizes 4, 6, and 10 have been added [New];
  • 4 to 200 lineup;
  • Space-saving cylinder designed with a compact body;
  • It is possible to mount small auto switches on 4 surfaces. (2 surfaces; for 12 to 25);
  • No projection of auto switch;
  • Lighter weight: Reduced by 5 to 13% (compared with the existing; CQ2 series);
  • Added pivot brackets for double clevis and compact type foot brackets;
  • Part numbers with rod end bracket and/or mounting bolt available; (Not necessary to order a bracket for the applicable cylinder separately.);
  • With auto switch (Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW,; CDQP2, CDQ2 S, CDBQ2)
