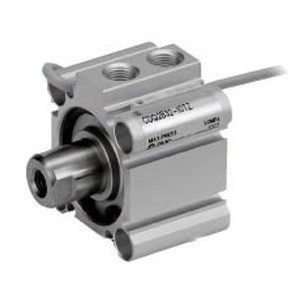

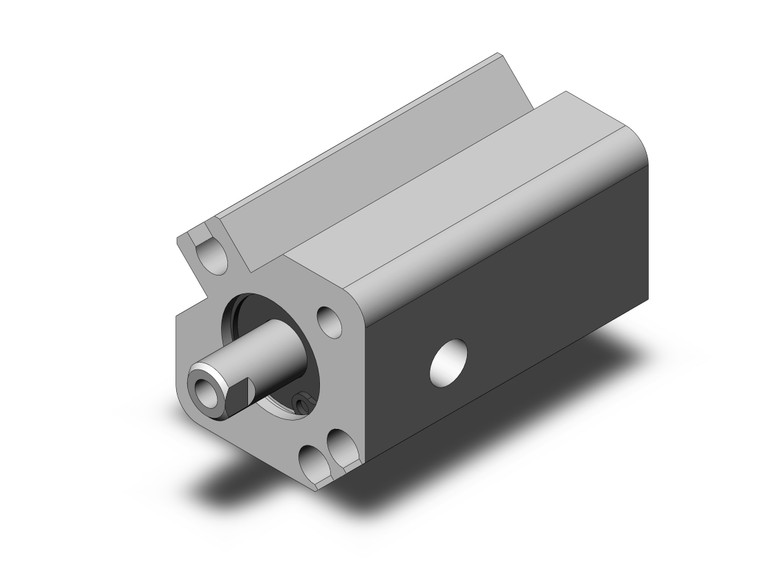

SMC CDQ2A12-5TZ CQ2 Z Series Compact Cylinder

The SMC CDQ2A12-5TZ CQ2 Z Series Compact Cylinder is engineered for precision and efficiency in space-constrained environments. This advanced pneumatic actuator is part of the CQ2 Z Series, renowned for its compact design and enhanced functionality. The cylinder is available in a comprehensive size range from 4mm to 200mm, with new additions in sizes 4, 6, and 10mm, catering to diverse application needs. Designed with a focus on space optimization, the CQ2 Z Series allows for the mounting of small auto switches on up to four surfaces, with two surfaces available for sizes 12mm to 25mm. This feature ensures seamless integration into automated systems without the inconvenience of protruding components. The cylinder's weight has been reduced by 5 to 13% compared to previous models, enhancing its suitability for applications where weight is a critical factor. The CDQ2A12-5TZ model includes added pivot brackets for double clevis and compact type foot brackets, providing versatile mounting options. Engineers will appreciate the convenience of part numbers that include rod end brackets and/or mounting bolts, eliminating the need for separate bracket orders. This cylinder is compatible with a range of auto switch series, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, offering flexibility in system design and operation. The SMC CDQ2A12-5TZ is an ideal choice for engineers seeking a reliable, space-saving solution with robust performance in automated manufacturing environments.
