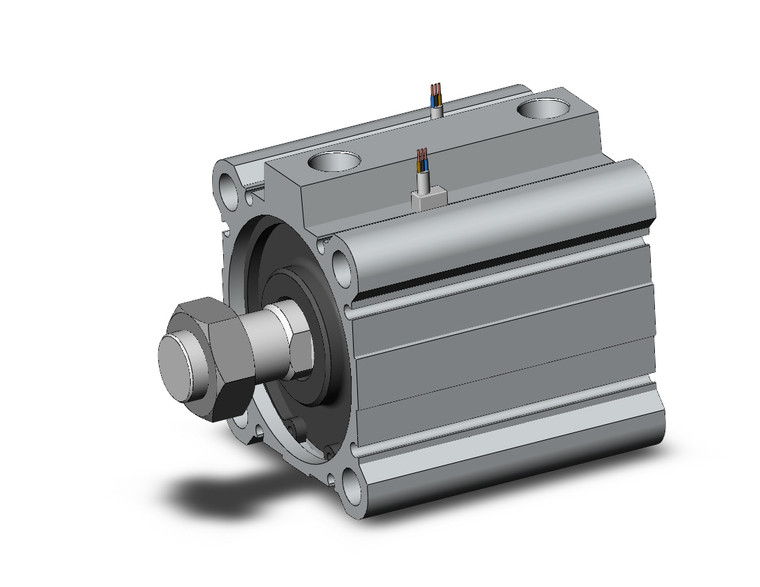

SMC CDQ2A63-40DMZ-M9PVMAPC CQ2 Z Series Compact Cylinder
SMC
$205.75
The SMC CDQ2A63-40DMZ-M9PVMAPC CQ2 Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is limited. The CQ2 Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
Designed for efficiency, this cylinder allows for the mounting of small auto switches on four surfaces, with no projection of the auto switch, ensuring a sleek and unobtrusive profile. The lightweight construction reduces weight by 5 to 13% compared to the existing CQ2 series, enhancing performance without compromising on strength.
For added convenience, the cylinder comes with pivot brackets for double clevis and compact type foot brackets. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder. Additionally, the CQ2 Z Series is compatible with a range of auto switches, including Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, providing flexibility and adaptability for various applications.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 63 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 40 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- Rod End Male Thread
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), Perpendicular, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
