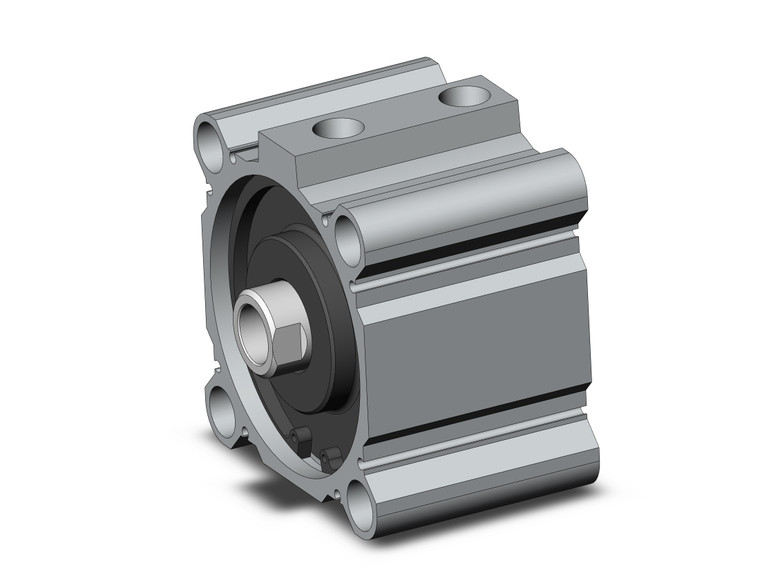

SMC CDQ2B100-20DZ-M9BA CQ2 Z Series Compact Cylinder
SMC
$241.65
The SMC CDQ2B100-20DZ-M9BA CQ2 Z Series Compact Cylinder is a versatile and space-efficient solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is at a premium. The CQ2 Z Series has expanded its lineup to include sizes 4, 6, and 10, in addition to the existing range from 4 to 200, providing a wide array of options to suit various requirements.
One of the standout features of this cylinder is its ability to accommodate small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring seamless integration without any protrusion. The cylinder's weight has been reduced by 5 to 13% compared to the previous CQ2 series, enhancing its efficiency and ease of use.
For added convenience, the CQ2 Z Series includes pivot brackets for double clevis and compact type foot brackets, and part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order these components separately. Additionally, the cylinder is compatible with a range of auto switches, including Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, offering flexibility and adaptability for various applications.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Through-hole (Standerd)
- Type:
- Pneumatic
- Bore Size:
- Bore Size 100 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 20 mm
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Mounting Bolt:
- None
- Rod End Bracket:
- None
- Auto Switch:
- Water Resistant 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
