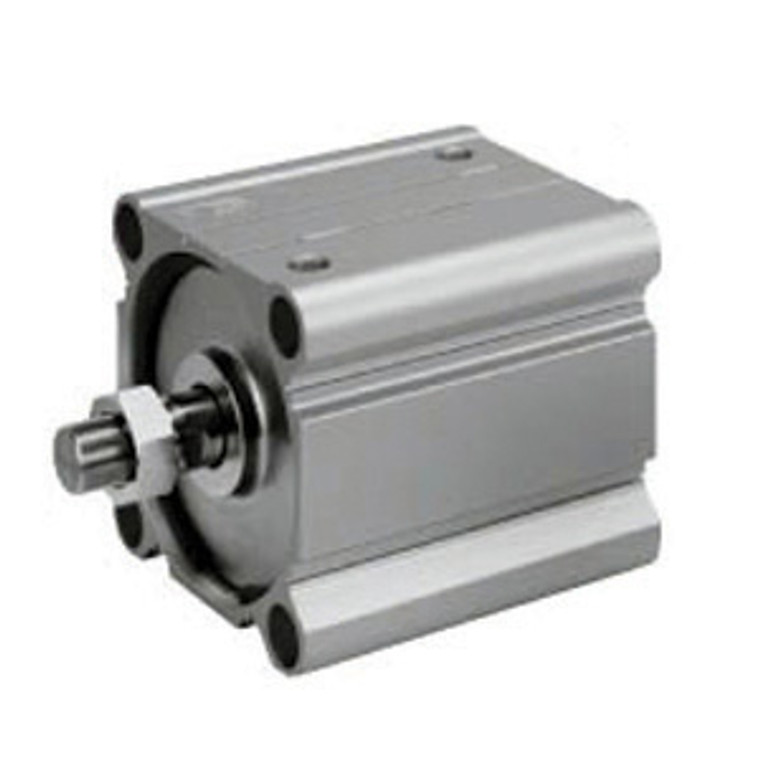

SMC CDQ2B125-180DCMZ-M9BASBPC-XB10 CQ2 Z Series Compact Cylinder

SMC CDQ2B125-180DCMZ-M9BASBPC-XB10 CQ2 Z Series Compact Cylinder

SMC
SKU:
CDQ2B125-180DCMZ-M9BASBPC-XB10
Availability:
Contact us to confirm availability and lead times.
$407.25
Condition:
New
Current Stock:
Description

CQ2 Z Series Compact Cylinder

  • Sizes 4, 6, and 10 have been added [New];
  • 4 to 200 lineup;
  • Space-saving cylinder designed with a compact body;
  • It is possible to mount small auto switches on 4 surfaces. (2 surfaces; for 12 to 25);
  • No projection of auto switch;
  • Lighter weight: Reduced by 5 to 13% (compared with the existing; CQ2 series);
  • Added pivot brackets for double clevis and compact type foot brackets;
  • Part numbers with rod end bracket and/or mounting bolt available; (Not necessary to order a bracket for the applicable cylinder separately.);
  • With auto switch (Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW,; CDQP2, CDQ2 S, CDBQ2)
    • Additional Information
    Built-in Magnet:
    Built-in Magnet
    Bore Size:
    Bore Size 125 mm
    Port Thread Type:
    Rc
    Body Option:
    Rod End Male Thread
    Auto Switch Mounting Groove:
    4 Sides
    Auto Switch:
    Water Resistant 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M8-4 pin, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Intermediate Stroke Using Exclusive Body
