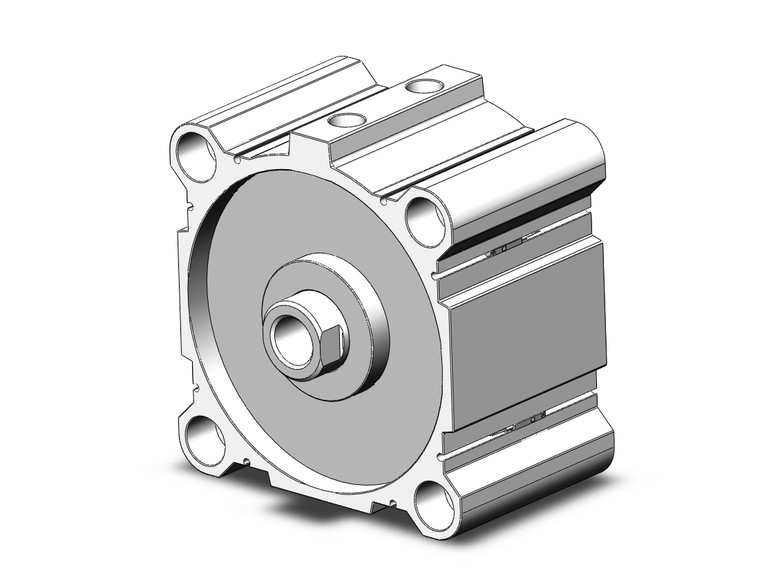

SMC CDQ2B160-20DCZ-M9PWSAPC CQ2 Z Series Compact Cylinder
SMC
$452.15
The SMC CDQ2B160-20DCZ-M9PWSAPC CQ2 Z Series Compact Cylinder is a versatile and efficient solution for your pneumatic needs. This compact cylinder is designed to save space with its streamlined body, making it ideal for applications where space is at a premium. The CQ2 Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
This cylinder allows for the mounting of small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring flexibility and ease of use. The design eliminates the projection of the auto switch, contributing to a cleaner and more efficient setup. Additionally, the cylinder is lighter in weight, with a reduction of 5 to 13% compared to the existing CQ2 series, enhancing its portability and ease of installation.
The CQ2 Z Series also features added pivot brackets for double clevis and compact type foot brackets, providing more mounting options. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder. This series is compatible with auto switches, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, offering a comprehensive solution for various applications.
- Built-in Magnet:
- Built-in Magnet
- Bore Size:
- Bore Size 160 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 20 mm
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 4 Sides
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
