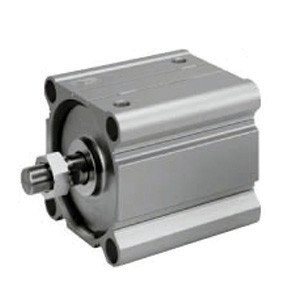

SMC CDQ2B180-75DCZ-A93Z CQ2 Z Series Compact Cylinder
SMC
$534.80
The SMC CDQ2B180-75DCZ-A93Z CQ2 Z Series Compact Cylinder is a versatile and space-efficient solution for your pneumatic needs. This innovative cylinder features newly added sizes of 4, 6, and 10, expanding its lineup from 4 to 200. Designed with a compact body, it saves valuable space while maintaining high performance. The cylinder allows for the mounting of small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring no projection of the auto switch. It boasts a lighter weight, reduced by 5 to 13% compared to the existing CQ2 series, making it easier to handle and install. The addition of pivot brackets for double clevis and compact type foot brackets enhances its versatility. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder. The CQ2 Z Series is compatible with auto switch options, including Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, providing a comprehensive solution for various applications.
- Built-in Magnet:
- Built-in Magnet
- Bore Size:
- Bore Size 180 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 75 mm
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 4 Sides
- Auto Switch:
- Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :5m, Apply Voltage :DC24V,AC100V
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
