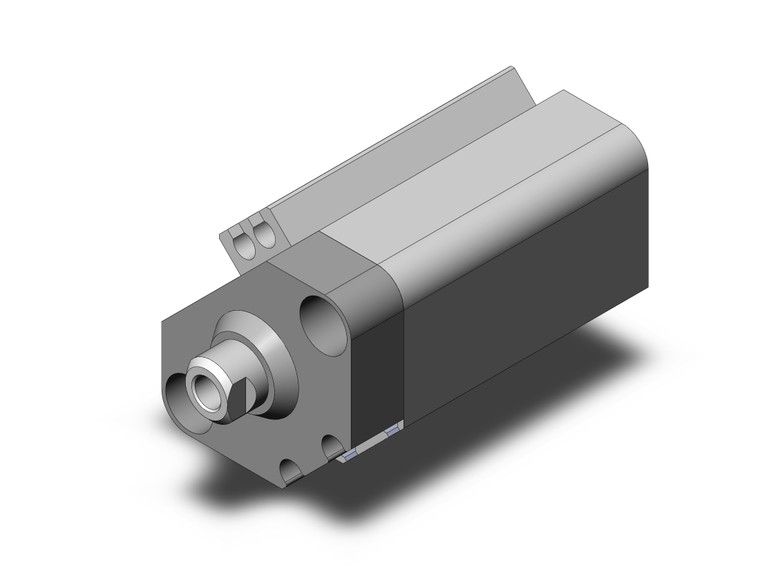

SMC CDQ2B20R-15DZ Compact Cylinder, Cq2-Z

(No reviews yet) Write a Review
SKU:
CDQ2B20R-15DZ
MPN:
CDQ2B20R-15DZ
Condition:
New
Magnet:
D (Built-in)
Mounting:
B (Through Hole [Standard])
Bore Size:
20mm
Port Thread Type:
Rc= 32-100 Bore
Water Resistant Seal:
R (NBR Seal, Nitrile Rubber)
Stroke:
15mm
Body Option:
Standard (Rod End Female Thread)
Auto Switch Groove:
Z (Auto Switch Mounting Grooves)
Auto Switch:
No Switch
Lead Wire or Prewired Connector:
0.5m or None in the Case of No Switch
Number:
2 pcs. or None in the Case of No Switch
  • <h2>C(D)Q2*R-Z, Compact Cylinder, Double Acting, Single Rod, Water Resistant</h2><p><h3>Water resistant version of the standard double acting, single rod version of the CQ2 compact cylinder includes a rod wiper to prevent moisture from entering the actuator. The CQ2 is available in bore sizes from 20mm to 100mm. It comes standard with male or female piston rod threads. It is possible to mount auto switches on any of the 4 surfaces.</h3>- Double acting, single rod, compact, water resistant cylinder<br>- Bore sizes (mm): 20, 25, 32, 40, 50, 63, 80, 100<br>- Standard stroke range (mm): Rc, NPT or G (32 to 100 bore)<br>- Auto switch capable<p><a href="https://content2.smcetech.com/pdf/CQ2_Z.pdf" target="_blank">Series Catalog</a>
  • SMC CDQ2B20R-15DZ compact cylinder, cq2-z
$58.30

Description

C(D)Q2*R-Z, Compact Cylinder, Double Acting, Single Rod, Water Resistant

Water resistant version of the standard double acting, single rod version of the CQ2 compact cylinder includes a rod wiper to prevent moisture from entering the actuator. The CQ2 is available in bore sizes from 20mm to 100mm. It comes standard with male or female piston rod threads. It is possible to mount auto switches on any of the 4 surfaces.

- Double acting, single rod, compact, water resistant cylinder
- Bore sizes (mm): 20, 25, 32, 40, 50, 63, 80, 100
- Standard stroke range (mm): Rc, NPT or G (32 to 100 bore)
- Auto switch capable

Series Catalog

AutoCAD File
