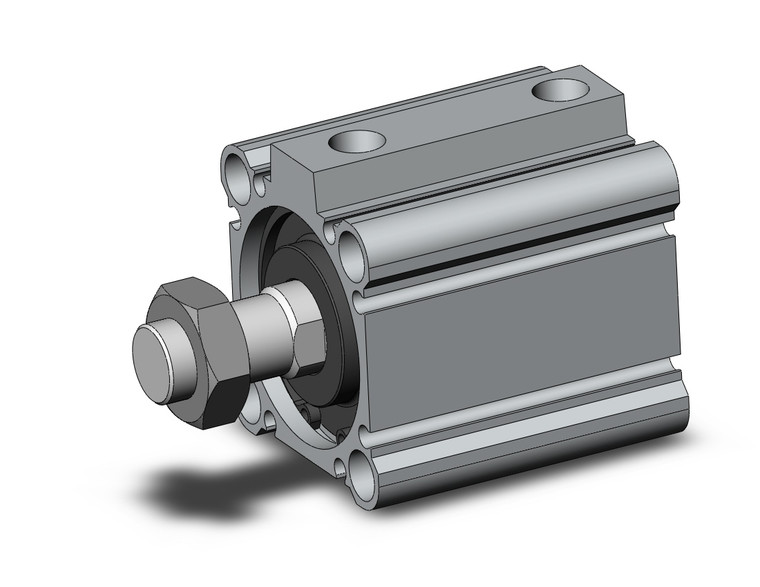

SMC CDQ2B40TF-20DCMZ CQ2 Z Series Compact Cylinder

(No reviews yet) Write a Review

SKU:

CDQ2B40TF-20DCMZ

MPN:

CDQ2B40TF-20DCMZ

Condition:

New

Built-in Magnet:

Built-in Magnet

Mounting Style:

Through-hole (Standerd)

Type:

Pneumatic

Bore Size:

Bore Size 40 mm

Port Thread Type:

Cylinder Stroke:

Standard Stroke 20 mm

Dual Stroke Mark:

Without Two Stroke Mark

Cylinder Stroke 2:

Without Cylinder Stroke 2

Body Option:

With Rubber Bumper And Rod End Male Thread

Auto Switch Mounting Groove:

Φ12-Φ25 2 Sides/Φ32-Φ100 4 Sides

Mounting Bolt:

None

Rod End Bracket:

None

Auto Switch:

Without Auto Switch

Number Of Auto Switches:

2 pcs. Or None

Made To Order:

Standard

Description

Description

CQ2 Z Series Compact Cylinder

Name: SMC CDQ2B40TF-20DCMZ CQ2 Z Series Compact Cylinder
Brand: SMC
SKU: CDQ2B40TF-20DCMZ
Price: 60.65 USD
Availability: InStock

Sizes Φ4, Φ6, and Φ10 have been added [New];

Φ4 to Φ200 lineup;

Space-saving cylinder designed with a compact body;

It is possible to mount small auto switches on 4 surfaces. (2 surfaces;　for Φ12 to Φ25);

No projection of auto switch;

Lighter weight: Reduced by 5 to 13% (compared with the existing;　CQ2 series);

Added pivot brackets for double clevis and compact type foot brackets;

Part numbers with rod end bracket and/or mounting bolt available;　(Not necessary to order a bracket for the applicable cylinder separately.);

With auto switch (Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW,;　CDQP2, CDQ2 S, CDBQ2)
