SMC

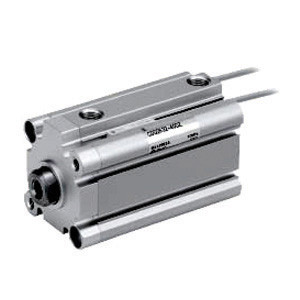

SMC CDQ2KB20-50DZ-M9PL Compact Cylinder, Cq2-Z

(No reviews yet) Write a Review
SKU:
CDQ2KB20-50DZ-M9PL
Condition:
New
Built-in Magnet:
Built-in Magnet
Mounting Style:
Through-hole (Standerd)
Bore Size:
Bore Size 20 mm
Port Thread Type:
Rc/M Thread
Cylinder Stroke:
Standard Stroke 50 mm
Dual Stroke Mark:
Without Two Stroke Mark
Cylinder Stroke 2:
Without Cylinder Stroke 2
Body Option:
Standard (Rod End Female Thread)
Auto Switch Mounting Groove:
?12-?25 2 Sides/?32-?63 4 Sides
Auto Switch:
Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Standard
$141.60

Description

CQ2K Z Series Compact Cylinder



  • Sizes ?4, ?6, and ?10 have been added [New]
  • ?4 to ?200 lineup
  • Space-saving cylinder designed with a compact body
  • It is possible to mount small auto switches on 4 surfaces. (2 surfaces;?for ?12 to ?25)
  • No projection of auto switch
  • Lighter weight: Reduced by 5 to 13% (compared with the existing;?CQ2 series)
  • Added pivot brackets for double clevis and compact type foot brackets
  • Part numbers with rod end bracket and/or mounting bolt available;?(Not necessary to order a bracket for the applicable cylinder separately.)
  • With auto switch (Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW,;?CDQP2, CDQ2?S, CDBQ2)
    • View AllClose
