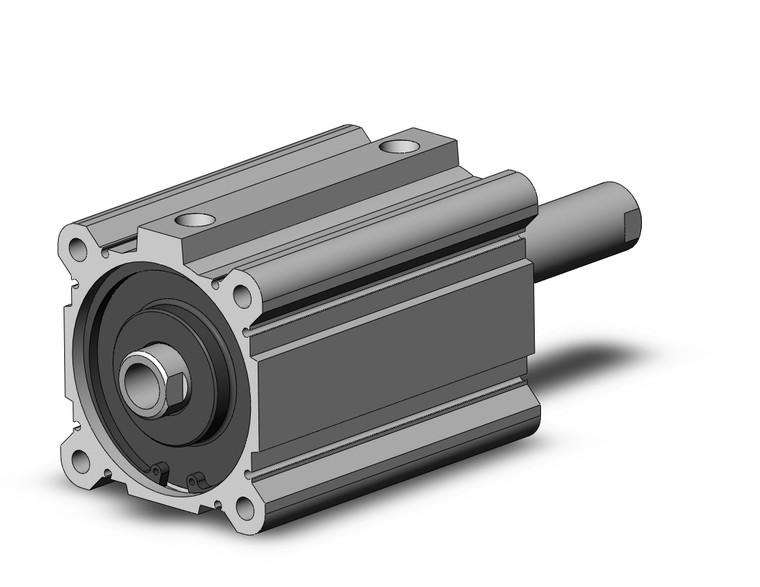

SMC CDQ2WA100-100DZ-M9BL CQ2W Z Series Compact Cylinder
SMC
$347.55

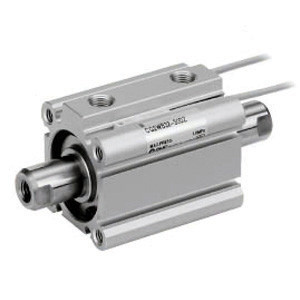

The SMC CDQ2WA100-100DZ-M9BL CQ2W Z Series Compact Cylinder is a versatile and efficient solution for your pneumatic needs. This innovative cylinder features newly added sizes of 4, 6, and 10, expanding the lineup from 4 to 200. Designed with a compact body, it is perfect for space-saving applications. The cylinder allows for the mounting of small auto switches on four surfaces, with two surfaces available for sizes 12 to 25, ensuring no projection of the auto switch. It boasts a lighter weight, reduced by 5 to 13% compared to the existing CQ2 series, enhancing its ease of use and installation. The addition of pivot brackets for double clevis and compact type foot brackets provides increased flexibility. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately. This cylinder is compatible with auto switch series CDQ2, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, making it a comprehensive choice for various applications.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Both Ends Tapped Style
- Type:
- Pneumatic
- Bore Size:
- Bore Size 100 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 100 mm
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
