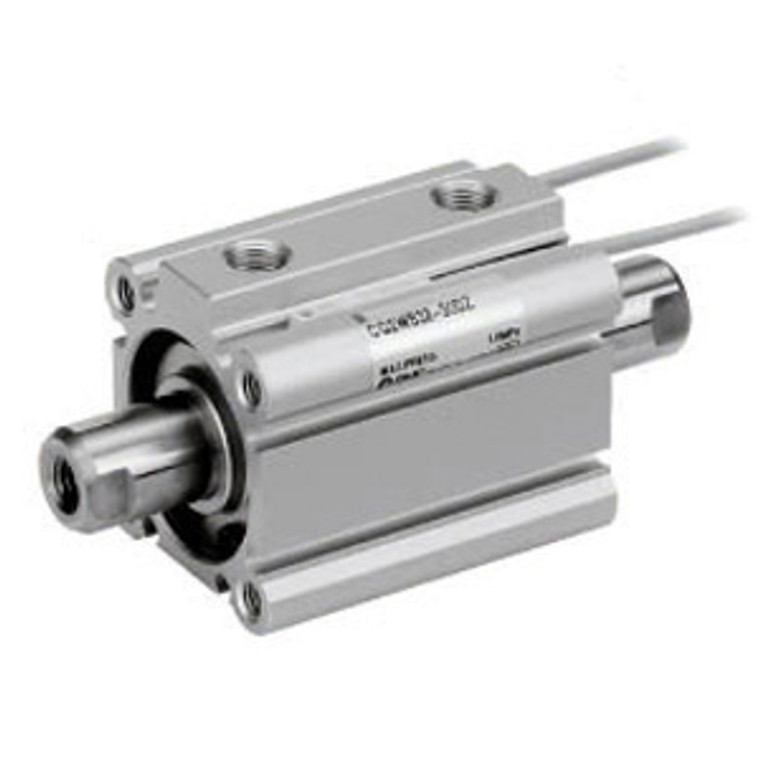

SMC CDQ2WB63-50DZ-P3DWAL CQ2W Z Series Compact Cylinder
SMC
$242.15
The SMC CDQ2WB63-50DZ-P3DWAL CQ2W Z Series Compact Cylinder is a versatile and space-saving solution for your pneumatic needs. This innovative cylinder features a compact body design, making it ideal for applications where space is at a premium. With sizes ranging from 4 to 200, the CQ2W Z Series offers a comprehensive lineup to suit various requirements.
Newly added sizes 4, 6, and 10 enhance its versatility, while the ability to mount small auto switches on four surfaces (two surfaces for sizes 12 to 25) ensures seamless integration into your system. The design eliminates the projection of the auto switch, contributing to a streamlined appearance and functionality.
This cylinder is lighter in weight, with a reduction of 5 to 13% compared to the existing CQ2 series, making it easier to handle and install. The addition of pivot brackets for double clevis and compact type foot brackets provides flexibility in mounting options. Part numbers with rod end brackets and/or mounting bolts are available, eliminating the need to order brackets separately for the applicable cylinder.
The CQ2W Z Series is compatible with auto switches from the CDQ2 series, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, ensuring a wide range of applications and configurations. Whether you're upgrading an existing system or designing a new one, the SMC CDQ2WB63-50DZ-P3DWAL offers the reliability and efficiency you need.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Through-hole (Standerd)
- Type:
- Pneumatic
- Bore Size:
- Bore Size 63 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 50 mm
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Auto Switch:
- Magnetic Field Resistant 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
