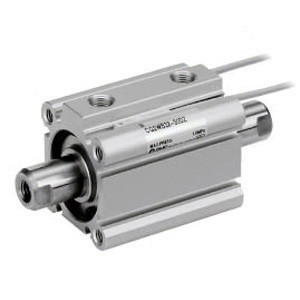

SMC CDQ2WB80-50DZ-P3DWAL CQ2W Z Series Compact Cylinder
SMC
$264.20
The SMC CDQ2WB80-50DZ-P3DWAL CQ2W Z Series Compact Cylinder is a versatile and efficient solution for your pneumatic needs. This compact cylinder is designed to save space with its streamlined body, making it ideal for applications where space is at a premium. The CQ2W Z Series now includes sizes 4, 6, and 10, expanding its lineup from 4 to 200.
One of the standout features of this cylinder is its ability to accommodate small auto switches on four surfaces, with no projection of the auto switch, ensuring a sleek and unobtrusive design. For sizes 12 to 25, auto switches can be mounted on two surfaces. The cylinder is also lighter, with a weight reduction of 5 to 13% compared to the existing CQ2 series, enhancing its ease of use and installation.
Additionally, the cylinder comes with added pivot brackets for double clevis and compact type foot brackets, providing more mounting options. Part numbers with rod end bracket and/or mounting bolt are available, eliminating the need to order a bracket separately for the applicable cylinder. The inclusion of an auto switch (Series CDQ2: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2) further enhances its functionality, making it a comprehensive choice for various industrial applications.
- Built-in Magnet:
- Built-in Magnet
- Mounting Style:
- Through-hole (Standerd)
- Type:
- Pneumatic
- Bore Size:
- Bore Size 80 mm
- Port Thread Type:
- Rc/M Thread
- Cylinder Stroke:
- Standard Stroke 50 mm
- Body Option:
- Standard (Rod End Female Thread)
- Auto Switch Mounting Groove:
- 12- 25 2 Sides/ 32- 100 4 Sides
- Auto Switch:
- Magnetic Field Resistant 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
