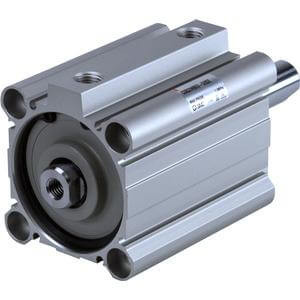

SMC CDQ2WF25-45DMZ CQ2W Z Series Compact Cylinder

The SMC CDQ2WF25-45DMZ CQ2W Z Series Compact Cylinder is engineered for precision and efficiency in space-constrained environments. This advanced pneumatic actuator is part of the CQ2W Z Series, renowned for its compact design and enhanced functionality. The cylinder is available in a comprehensive size range from ?4 to ?200, with the recent addition of sizes ?4, ?6, and ?10, catering to diverse application needs. Designed with a focus on space optimization, the CQ2W Z Series features a body that allows for the mounting of small auto switches on up to four surfaces, with two surfaces available for sizes ?12 to ?25. This design eliminates the projection of auto switches, ensuring a streamlined profile that is ideal for tight installations. The cylinder's weight has been reduced by 5 to 13% compared to the existing CQ2 series, contributing to overall system efficiency and ease of handling. The inclusion of pivot brackets for double clevis and compact type foot brackets enhances mounting flexibility, while part numbers with rod end brackets and/or mounting bolts simplify the ordering process by eliminating the need for separate bracket orders. Engineered for reliability and performance, the SMC CDQ2WF25-45DMZ is compatible with a range of auto switch series, including CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, and CDBQ2, making it a versatile choice for automation systems. This compact cylinder is an ideal solution for engineers and manufacturing professionals seeking a robust, space-saving actuator with superior adaptability and reduced weight.
