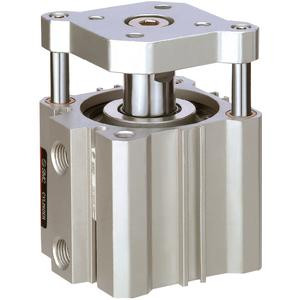

SMC CDQMA32NN-40 Compact Guide Rod Cylinder, Cqm
SMC
$100.20
the cqm is a compact cylinder integrated with a guide rod and plate. the series is available in 12, 16, 20, 25, 32, 40, 50, 63, 80, and 100mm bore sizes. non-rotating accuracy is 0.2 or less. series cqm allows a workpiece to be mounted directly to the tooling plate. auto switches are mountable/removable even when the plate is retracted.
- guide rod type compact cylinder
- bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, and 100
- standard strokes *: 5 to 100
- 4 times the lateral load resistance of the cq2k
- non-rotating accuracy 0.2 or less
- Auto Switch:
- No Switch
- Stroke:
- 40mm
- Port Thread:
- ??12-??25, NPT ??32-??100
- Bore Size:
- 32mm
- Mounting:
- ??32 - ??50
- Magnet:
- Magnet
