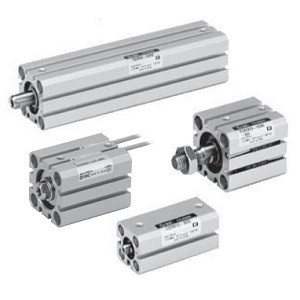

SMC CDQSB16-100DCM-M9PVMAPC4 Compact Cylinder
- SKU:
- CDQSB16-100DCM-M9PVMAPC4
- Condition:
- New
- Magnet:
- D (Built-in)
- Mounting:
- B (Through Hole, Both Ends Tapped)
- Bore Size:
- 16mm
- Stroke:
- 100mm
- Option:
- CM (Rubber Bumper,Rod End Male Thread)
- Auto Switch:
- M9PV--Solid State, Gen. Purpose, 3 Wire PNP, Vertical
- Lead Wire or Prewired Connector:
- MAPC (1.0m Cord Length, M8-3 Pin Connector)
- Number:
- 4 pcs.
Description
the cqs compact cylinder is available for those small bore cylinder applications where saving space is a concern. the cqs offers standard long strokes * in four bore sizes from 12 to 25mm. long stroke versions incorporate a wear band and thicker piston to handle the increased bearing needs of the longer strokes. both switch capable and non-switch capable body styles are the same, and switches can be mounted on three * and four * sides. an increased side load version * is available for more demanding applications.
- anti-laterial load
- bore sizes: 12, 16, 20, 25 *
- strokes: 5mm through 50mm depending upon bore size
- mounts: through hole, both ends tapped, foot, front or rear flanges, double clevis
- variety of switches and a variety of lead wire lengths
