SMC

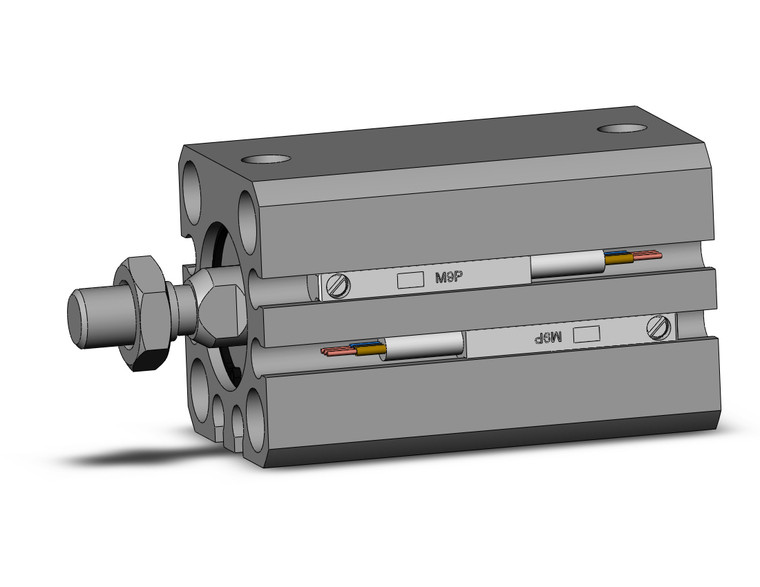

SMC CDQSB16-25DCM-M9PM CQS Series Compact Cylinder

(No reviews yet) Write a Review
SKU:
CDQSB16-25DCM-M9PM
MPN:
CDQSB16-25DCM-M9PM
Condition:
New
Built-in Magnet:
Built-in Magnet
Mounting Style:
Basic
Bore Size:
Bore Size 16 mm
Cylinder Stroke:
Standard Stroke 25 mm
Dual Stroke Mark:
Without Two Stroke Mark
Cylinder Stroke 2:
Without Cylinder Stroke 2
Option:
With Rubber Bumper And Rod End Male Thread
Auto Switch:
Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Standard
  • SMC CDQSB16-25DCM-M9PM Cylinder, Compact
  • SMC CDQSB16-25DCM-M9PM CQS Series Compact Cylinder
$127.00

Description

CQS Series Compact Cylinder

  • With this compact square type, auto switch mounting on three or;?four sides is possible. This compact cylinder does not protrude from;?the body when mounting an auto switch;
  • Added pivot brackets for double clevis and compact type foot brackets;
  • With auto switch (Series CDQS: CDQS, CDQSW, CDQSK, CDQSKW,CDQS S)
  • View AllClose
