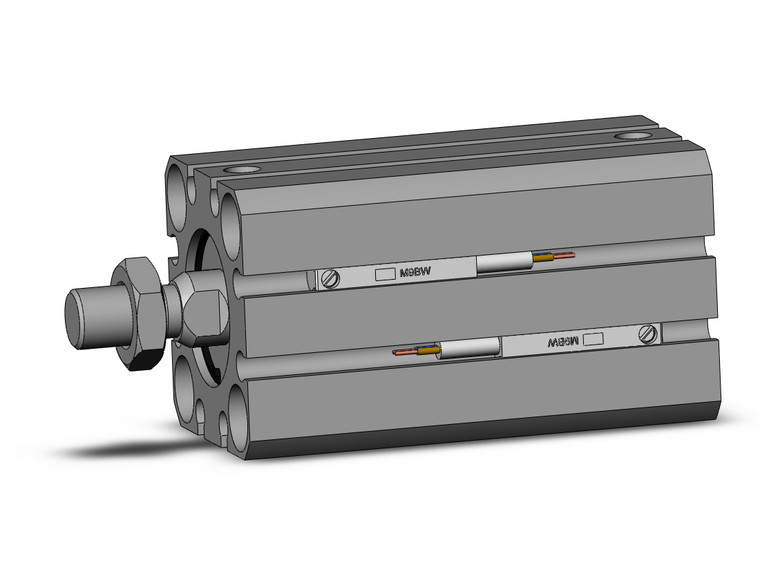

SMC CDQSB20-35DCM-M9BWL Cylinder, Compact

(No reviews yet) Write a Review
SKU:
CDQSB20-35DCM-M9BWL
Condition:
New
Magnet:
D (Built-in)
Mounting:
B (Through Hole, Both Ends Tapped)
Bore Size:
20mm
Stroke:
35mm
Option:
CM (Rubber Bumper,Rod End Male Thread)
Auto Switch:
M9BW--Solid State, 2-color Indication, 2 Wire
Lead Wire or Prewired Connector:
L (3m)
Number:
2 pcs. (Or None in the Case of No Switch)
  • <div class="product-description"><p>the cqs compact cylinder is available for those small bore cylinder applications where saving space is a concern. the cqs offers standard long strokes * in four bore sizes from 12 to 25mm. long stroke versions incorporate a wear band and thicker piston to handle the increased bearing needs of the longer strokes. both switch capable and non-switch capable body styles are the same, and switches can be mounted on three * and four * sides. an increased side load version * is available for more demanding applications. </p><ul><li>anti-laterial load</li><li>bore sizes: 12, 16, 20, 25 *</li><li>strokes: 5mm through 50mm depending upon bore size</li><li>mounts: through hole, both ends tapped, foot, front or rear flanges, double clevis</li><li>variety of switches and a variety of lead wire lengths</li></ul><br><div class="product-files"><div><a target="_blank" href="https://automationdistribution.com/content/files/pdf/cqs.pdf"> series catalog</a></div><div><a target="_blank" href="https://automationdistribution.com/content/files/pdf/11-cqs-e.pdf.pdf">replacement parts pdf</a></div></div></div>
  • SMC CDQSB20-35DCM-M9BWL cylinder, compact
$146.70

Description

the cqs compact cylinder is available for those small bore cylinder applications where saving space is a concern. the cqs offers standard long strokes * in four bore sizes from 12 to 25mm. long stroke versions incorporate a wear band and thicker piston to handle the increased bearing needs of the longer strokes. both switch capable and non-switch capable body styles are the same, and switches can be mounted on three * and four * sides. an increased side load version * is available for more demanding applications.

  • anti-laterial load
  • bore sizes: 12, 16, 20, 25 *
  • strokes: 5mm through 50mm depending upon bore size
  • mounts: through hole, both ends tapped, foot, front or rear flanges, double clevis
  • variety of switches and a variety of lead wire lengths
