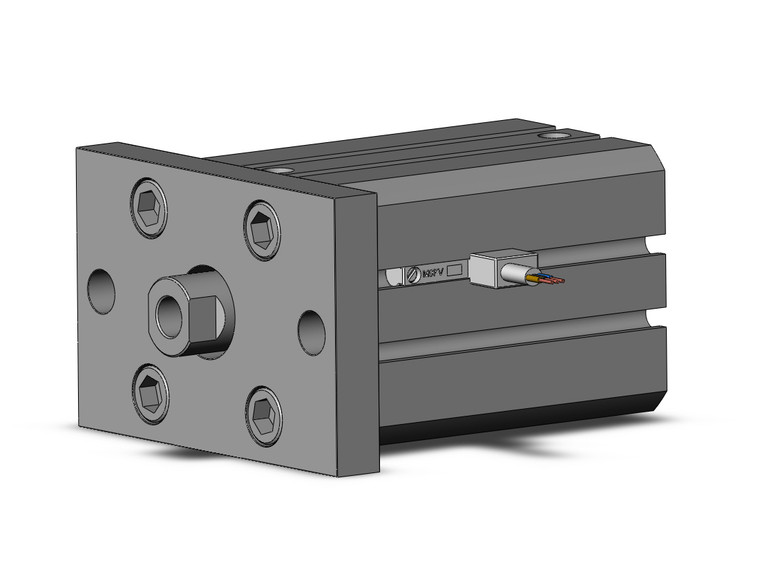

SMC CDQSFS25-25DC-M9PVSBPCS Cylinder, Compact

SMC CDQSFS25-25DC-M9PVSBPCS CQSS Series Compact Cylinder

SMC
SKU:
CDQSFS25-25DC-M9PVSBPCS
Availability:
Factory stock
$125.30
Condition:
New
Current Stock:
Description

CQSS Series Compact Cylinder

  • With this compact square type, auto switch mounting on three or; four sides is possible. This compact cylinder does not protrude from; the body when mounting an auto switch;
  • Added pivot brackets for double clevis and compact type foot brackets;
  • With auto switch (Series CDQS: CDQS, CDQSW, CDQSK, CDQSKW,CDQS S)
    • Additional Information
    Built-in Magnet:
    Built-in Magnet
    Mounting Style:
    Rod Side Flange Style
    Bore Size:
    Bore Size 25 mm
    Cylinder Stroke:
    Standard Stroke 25 mm
    Option:
    With Rubber Bumper and Rod End Female thread
    Auto Switch:
    Solid State Auto Switch, With Pre-wired Connector M8-4 pin, With Indicator Light, 3-wire (PNP), Perpendicular, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    1 pc.
    Made To Order:
    Standard
