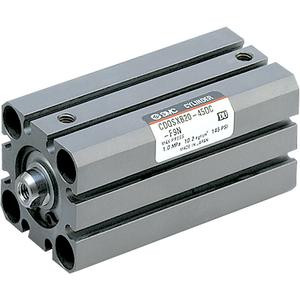

SMC CDQSXB12-25D-A93L CQSX Series Low Speed Cylinder Double Acting, Single Rod

SMC CDQSXB12-25D-A93L CQSX Series Low Speed Cylinder Double Acting, Single Rod

SMC
SKU:
CDQSXB12-25D-A93L
Availability:
Factory Stock
$125.70
Condition:
New
Current Stock:
Description

CQSX Series Low Speed Cylinder Double Acting, Single Rod

  • Reducing adhesion/quick extension;
  • Smooth operation possible even at 0.5 mm/s (1 mm/s for ?16 or smaller);
  • Minimum operating pressure is reduced in half. (Compared to previous version);
  • Improved functions (New structure equivalent to the standard models);
  • Interchangeable with the standard models;
  • With auto switch(Series CDJ2X-Z?CDJ2X-Z, Series CDM2X-Z?CDM2X, ;?Series CDQSX?CDQSX, Series CDQ2X?CDQ2X, Series CDUX?CDUX)
    • Additional Information
    Built-in Magnet:
    Built-in Magnet
    Mounting Style:
    Through-hole/Both Ends Tapped Common (Standard)
    Bore Size:
    Bore Size 12 mm
    Cylinder Stroke:
    Standard Stroke 25 mm
    Option:
    Standard (Rod End Female Thread)
    Auto Switch:
    Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V,AC100V
    Number Of Auto Switches:
    2 pcs. Or None
