SMC

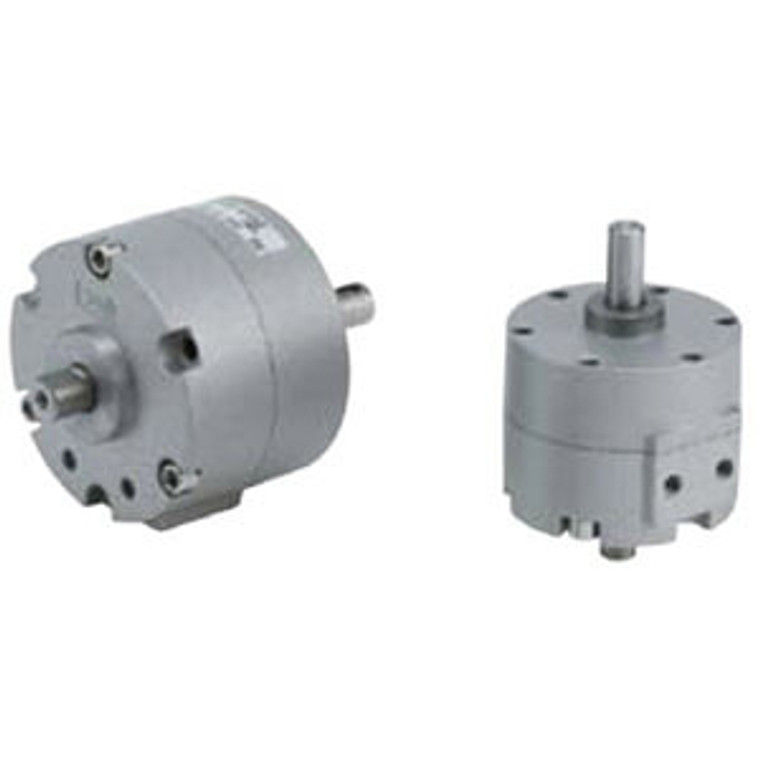

SMC CDRB2BW15-180SZ-M9PM CRB2 Series Rotary Actuator Vane Type

(No reviews yet) Write a Review
SKU:
CDRB2BW15-180SZ-M9PM
MPN:
CDRB2BW15-180SZ-M9PM
Condition:
New
With Auto Switch(Built-in Magnet):
With Auto Switch
Mounting Style:
Basic
Shaft Type:
Double Shaft With Single Flat (Size 10 To 30)
Angle Adjuster:
None
Size:
15
Rotating Angle:
180°
Vane Type:
Single Vane
Connecting Port:
Side Ported
Auto Switch:
Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Standard
  • SMC CDRB2BW15-180SZ-M9PM actuator, rotary, vane type
  • SMC CDRB2BW15-180SZ-M9PM CRB2 Series Rotary Actuator Vane Type
$203.30

Description

CRB2 Series Rotary Actuator Vane Type

  • Possible to move the auto switch mounting position as desired;
  • Direct mounting;
  • Connection port position: Side ported and axial ported selectable; (When a switch and angle adjuster are installed, side ported only.);
  • Low pressure operation: 0.2 MPa (Size 10), 0.15 MPa (Sizes 15 to 40);
  • Possible to adjust the angle as desired;
  • With auto switch (Series CDRB2: CDRB2 W, CDRB2 WU)
