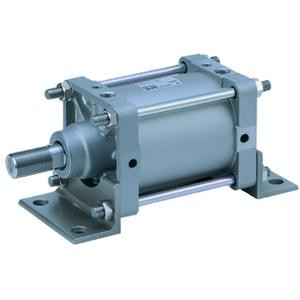

SMC CDS2F140-50-A54Z CS2 Series Air Cylinder
SMC
$520.30
Introducing the SMC CDS2F140-50-A54Z CS2 Series Air Cylinder, a cutting-edge solution designed to enhance your pneumatic systems. This advanced air cylinder features a range of new additions, including the expansion of the standard type to 320 and the introduction of long stroke options from 180 to 320. Experience a significant reduction in weight, with the cylinder now up to 65% lighter, dropping from 39.1 kg to just 13.4 kg, without compromising on performance. The high rigidity of the cylinder allows for a maximum lateral load of 900 N, ensuring robust and reliable operation. Additionally, the improved ease of piping is achieved through centralized piping ports in the axial direction, offering increased flexibility and efficiency in your setup. Upgrade your system with the SMC CDS2F140-50-A54Z for superior performance and versatility.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Rod Side Flange Style
- Bore Size:
- Bore Size 140 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 50 mm
- Suffix For Cylinder:
- Without Rod Boot,Both Ends
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- Without Rod Boot,Both Ends
- Auto Switch:
- Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :5m, Apply Voltage :DC24V,AC100V,200V
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
