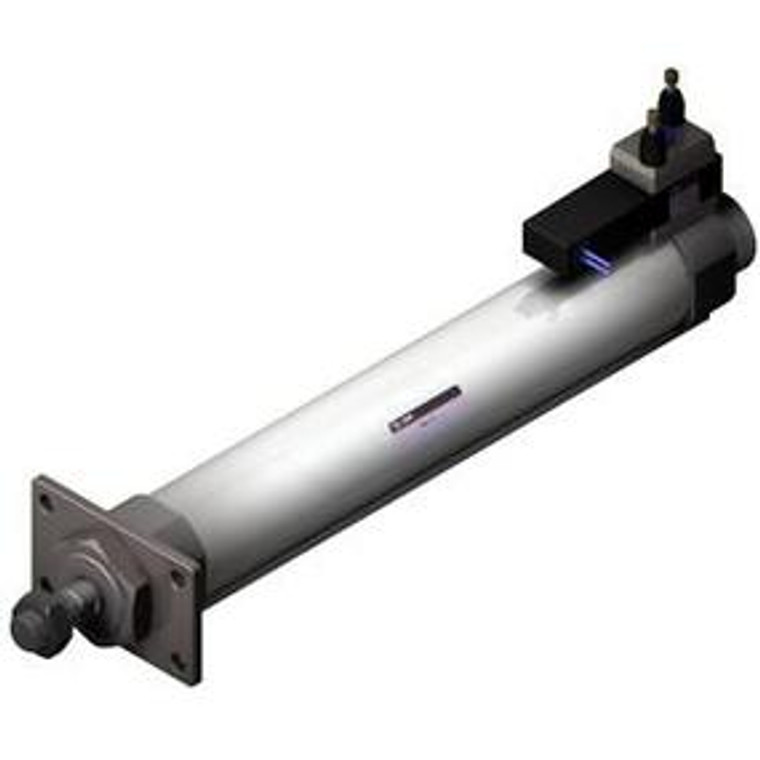

SMC CDVM5F20-150-13G-B54L Round Body Cylinder W/Valve

SMC CDVM5F20-150-13G-B54L CVM5 Series Valve Mounted Cylinder Double Acting Single Rod

SMC
SKU:
CDVM5F20-150-13G-B54L
$184.20
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

CVM5 Series Valve Mounted Cylinder Double Acting Single Rod

  • Valve is mounted on a round cylinder;
  • Built-in speed controller for some models;
  • Cylinder with a valve makes it easy to adjust speed;
  • With auto switch (Series CDVJ: CDVJ5, CDVJ3, Series CDVM:;?CDVM5, CDVM5K, CDVM3, CDVM3K, Series CDV3: CDV3, CDV3K,;?Series CDVS1: CDVS1, CDVS1K)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Rod Side Flange Style
    Bore Size:
    Bore Size 20 mm
    Port Thread Type:
    Rc
    Piping Type:
    Screw-in Type
    Cylinder Stroke:
    Standard Stroke 150 mm
    Rod Extended/Retracted When Energized:
    Rod Extended When Energized
    Suffix For Cylinder:
    None
    Solenoid Valve:
    2 Position Single
    Solenoid Valve Voltage:
    110 VAC(115 VAC)
    Electrical Entry:
    Grommet
    Light/Surge Voltage Suppressor:
    None
    Manual Override:
    Push-turn Locking Type
    Auto Switch:
    Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V,AC100V,200V
    Number Of Auto Switches:
    2 pcs. Or None
    Auto Switch Mounting Bracket:
    None
    Made To Order:
    Standard
