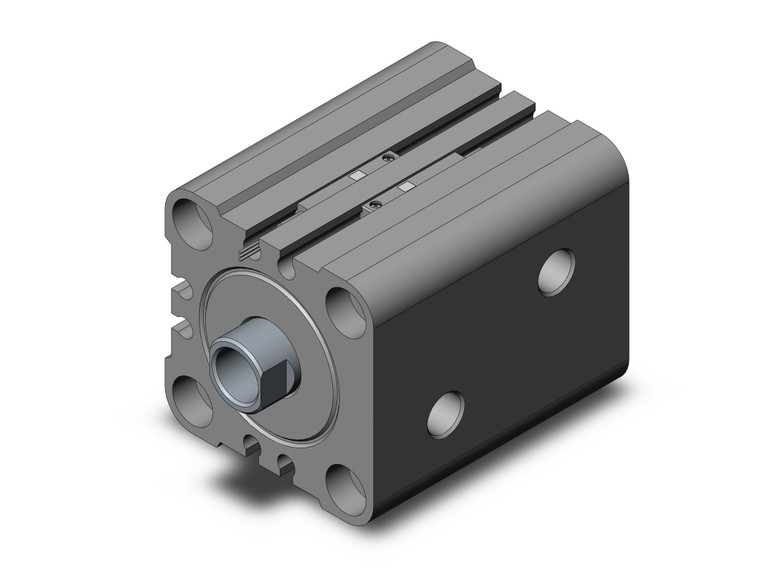

SMC CHDKDB25-15-M9PMAPC Compact High Pressure Hydraulic Cylinder

SMC CHDKDB25-15-M9PMAPC CHKD Series JIS Standard Compact Hydraulic Cylinder

SMC
SKU:
CHDKDB25-15-M9PMAPC
Availability:
Factory Stock
$214.15
Condition:
New
Current Stock:
Description
The SMC CHDKDB25-15-M9PMAPC CHKD Series JIS Standard Compact Hydraulic Cylinder is engineered for efficiency and versatility. Featuring a lightweight, compact aluminum body, this hydraulic cylinder is designed to meet JIS standards, ensuring reliability and performance. It offers the flexibility to mount auto switches, maintaining the same longitudinal dimensions whether auto switches are installed or not. This makes it an ideal choice for applications requiring precision and adaptability. The CHKD Series is available with auto switch options, including the CHDKD and CHDKG models, providing enhanced functionality for your hydraulic systems.
Additional Information
With Auto Switch(Built-in Magnet):
With Auto Switch
Mounting Style:
Basic Style
Bore Size:
Bore Size 25 mm
Port Thread Type:
Rc
Cylinder Stroke:
Standard Stroke 15 mm
Rod End Thread:
Rod End Female Thread
Auto Switch:
Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Standard
