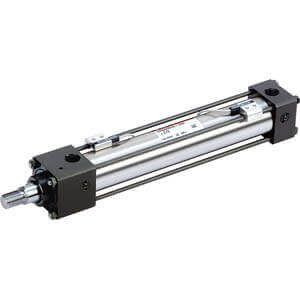

SMC CHDSDFY40TN-150N-B-M9BAVSAPC3 Hydraulic Cylinder

CH series hydraulic cylinders are available in compact, round body, JIS or tie-rod types. Nominal pressure ranges from 3.5MPa to 16MPa. Bore sizes are available, depending on the series, from 20 to 160. Auto switches are available on most models.

AutoCAD File
