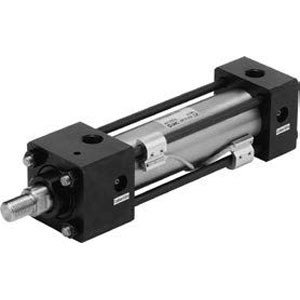

SMC CHDSGCB40-400A-B-M9BWZ CHSG Series ISO Standard Hydraulic Cylinder

SMC CHDSGCB40-400A-B-M9BWZ CHSG Series ISO Standard Hydraulic Cylinder

SMC
SKU:
CHDSGCB40-400A-B-M9BWZ
Availability:
Factory Stock
$450.50
Condition:
New
Current Stock:
Description

CHSG Series ISO Standard Hydraulic Cylinder

  • Cylinder with built-in cover and mounting bracket allows easy disassembly;?and assembly;
  • Compact section dimension of the cover compared to tie-rod cylinders;
  • Reduced overall length (Compared to Series CH2);
  • With auto switch (Series CHDS : CHDSD, CHDSG)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Double Clevis Style
    Bore Size:
    Bore Size 40 mm
    Port Thread Type:
    Rc
    Stroke:
    Stroke 400 mm
    Suffix For Cylinder:
    With Rod End Nut,With Cushion On Both Sides
    Ports:
    Port On Top,Cushion Valve Down
    Auto Switch:
    2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :5m, Apply Voltage :DC24V(DC10~28V)
    Number Of Auto Switches:
    2 pcs. Or None
