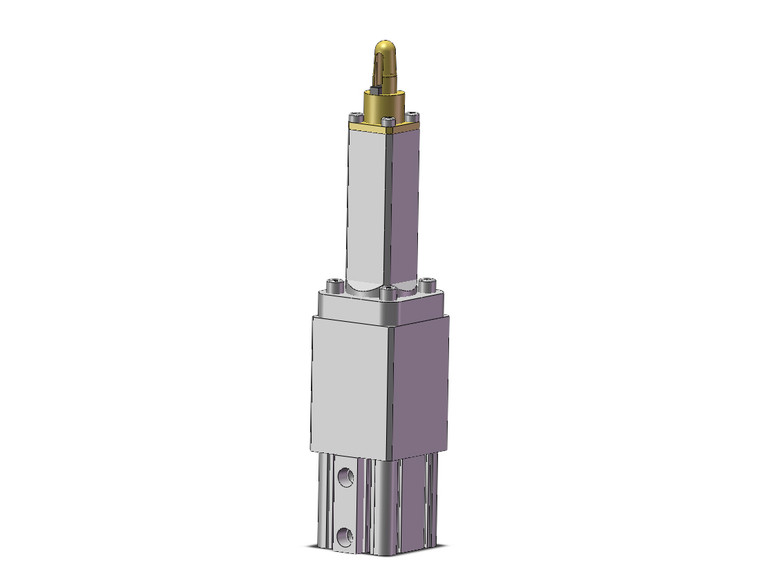

SMC CKQGC32-118RAH-X2082 Cylinder, Pin Clamp

SMC CKQGC32-118RAH-X2082 CKQG32 Series Pin Clamp Cylinder Compact Cylinder Type Clamping Height HIGH Type

SMC
SKU:
CKQGC32-118RAH-X2082
$573.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

CKQG32 Series Pin Clamp Cylinder Compact Cylinder Type Clamping Height HIGH Type

  • 2 types of clamping heights can be selected. : 30mm, 100mm;
  • Plate cylinder type: 29 mm width;
  • All types with lock;
  • Plate cylinder type with small auto switch;
  • Newly added guide pins and a diamond shape option (available for;　Φ10 or more) for workpieces with Φ9, Φ11 and Φ13 hole diameters.
    • Additional Information
    Mounting Surface Position:
    180 Deg From The Port Side
    Guide Pin Diameter:
    11.8 mm
    Clamp Arm Position:
    Same As The Port Side
    Auto Switch:
    Without Auto Switch Built-In Magnet
    Number Of Auto Switches:
    2 pcs. Or None
