Description
Ideal For Gripping Many Differently Sized Parts, The Clean Room Air Gripper Has A Wide Opening In A Parallel Style.
Features -
Clean Series: Vacuum Suction Type
Bore Size: 20Mm
Thread Type: Rc: 32, 40 Bore; M Thread: 10,16,20,25 Bore
Opening/Closing Stroke: Wide Opening
Auto Swith: No Switch
Lead Wire: None
&Nbsp;

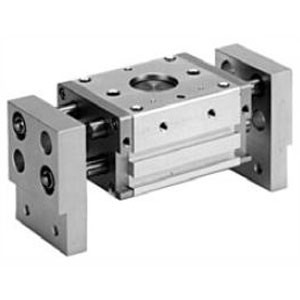

Clean Room Series 11/22-Mhl2 Air Grippers Are Designed For Applications That Require A Wide Travel Range Of Gripper Fingers. The Mhl Is Ideal For Gripping Many Different Sized Parts. Finger Motion Is Synchronized By A Rack-And-Pinion Mechanism. The Double Piston Construction Creates A Compact Gripper With Large Holding Force. Available In Bore Sizes 10, 16, 20, 25, 32 And 40. Axial Mounting (Tapped Body Or Through Hole) Or Lateral Mounting Options Available. Auto Switch Capable.
- Wide Opening Air Gripper
- Parallel Style
- Applicable Bore Size: 10, 16, 20, 25, 32, 40 Mm
- Opening/Closing Stroke Range: 20-200 Mm
- Auto Switch Capable
- Clean Room Series
