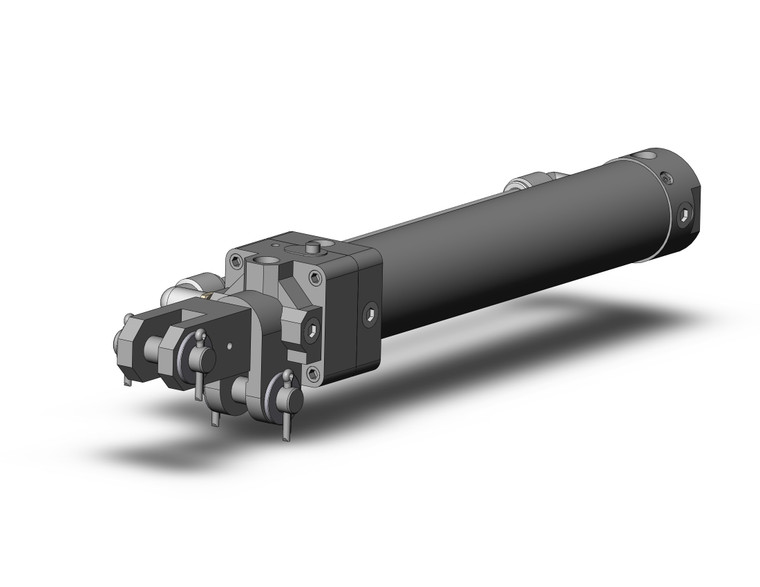

SMC CLK2A32-150Y-F Clamp Cylinder With Lock

SMC CLK2A32-150Y-F CLK2 Series Clamp Cylinder With Lock With Magnetic Field Resistant Auto Switch Band Mounting Compliant

SMC
SKU:
CLK2A32-150Y-F
Availability:
Factory Stock
$353.85
Condition:
New
Current Stock:
Description
The SMC CLK2A32-150Y-F is a high-performance clamp cylinder from the CLK2 Series, designed to enhance operational efficiency in industrial applications. This innovative cylinder features a single-directional lock, allowing it to maintain a clamped or unclamped state even when air supply pressure drops or residual pressure is released. Its magnetic field resistant auto switch and band mounting compliance ensure reliable performance in challenging environments. The built-in cushion valve and plug eliminate overhang from the tube cover, streamlining operations and reducing maintenance needs. Ideal for applications requiring precise and secure clamping, the CLK2A32-150Y-F is engineered to deliver consistent results and long-lasting durability.
Additional Information
Built-in Standard Magnet Type:
Without Magnet
Clevis Width:
32:12 mm, 40· 50· 63:16.5 mm
Bore Size:
Bore Size 32 mm
Port Type:
Rc
Cylinder Stroke:
Standard Stroke 150 mm
Cylinder Stroke:
Double Knuckle Joint M6 Without Tap
Option:
None
Locking Direction:
Extension Locking
Port/Bypass Piping Position:
Port Position:Top
Auto Switch:
Without Auto Switch
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Standard
