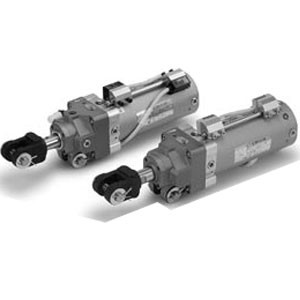

SMC CLK2PA40-75YA-B Clamp Cylinder With Lock

SMC CLK2PA40-75YA-B CLK2G/CLK2P Series Clamp Cylinder With Lock With Magnetic Field Resistant Auto Switch Rod Mounting

SMC
SKU:
CLK2PA40-75YA-B
Availability:
Contact us to confirm availability and lead times.
$403.00
Condition:
New
Current Stock:
Description
The SMC CLK2PA40-75YA-B is a high-performance clamp cylinder from the CLK2G/CLK2P Series, designed to maintain a clamped or unclamped state even when air supply pressure drops or residual pressure is released, thanks to its single-directional lock feature. This innovative design enhances operational efficiency by eliminating overhang from the tube cover, incorporating a built-in cushion valve and plug. Additionally, it is equipped with a magnetic field resistant auto switch rod mounting, ensuring reliable performance in challenging environments. Ideal for applications requiring secure and stable clamping, this clamp cylinder is a robust and efficient solution for your industrial needs.
Additional Information
Type:
Built-In Strong Magnet Type With Magnetic Field Resistant Auto Switch
Clevis Width:
16.5 mm
Bore Size:
Bore Size 40 mm
Port Type:
Rc
Cylinder Stroke:
Standard Stroke 75 mm
Cylinder Stroke:
Double Knuckle Joint M6 With Tap
Option:
None
Locking Direction:
Retraction Locking
Port/Bypass Piping Position:
Port Position:Top
Switch Mounting Rod Position:
Top/None
Auto Switch:
Without Auto Switch Built-in Magnet Without Switch Mounting Rod
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Standard
