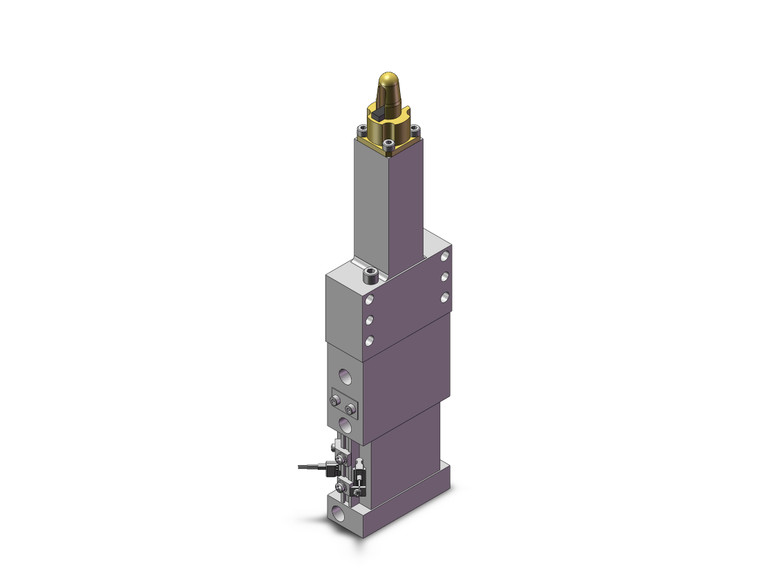

SMC CLKU32-140RAH-M9PVM-X2322 Cyl, Clamp

SMC CLKU32-140RAH-M9PVM-X2322 C(L)KU32 Series Pin Clamp Cylinder Small Auto Switch Mounting Plate Cylinder Type Clamping Height HIGH Type

SMC
SKU:
CLKU32-140RAH-M9PVM-X2322
$951.50
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

C(L)KU32 Series Pin Clamp Cylinder Small Auto Switch Mounting Plate Cylinder Type Clamping Height HIGH Type

  • 2 types of clamping heights can be selected. : 30mm, 100mm;
  • Plate cylinder type: 29 mm width;
  • All types with lock;
  • Plate cylinder type with small auto switch;
  • Newly added guide pins and a diamond shape option (available for;??10 or more) for workpieces with ?9, ?11 and ?13 hole diameters.
    • Additional Information
    With Lock:
    With Lock
    Bore Size:
    Equiv.?32 Piston Area
    Guide Pin Diameter:
    14.0 mm
    Guide Pin Shape:
    Round Type
    Clamp Arm Position:
    Same As The Port Side
    Clamping Height:
    Clamping Height HIGH Type
    Auto Switch:
    Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), Perpendicular, Lead Wire :1m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Magnetic Field Resistant Auto Switch/Small Auto Switch Mounting Clamping Height HIGH Type
