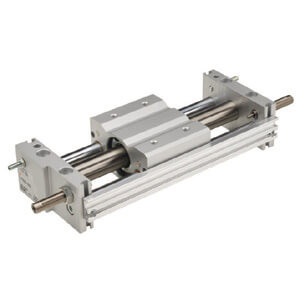

SMC CY1S20-400Z-M9NSAPC CY1S-Z Series Magnetically Coupled Rodless Cylinder Slider Type
SMC
$462.15
The SMC CY1S20-400Z-M9NSAPC is a part of the CY1S-Z Series, featuring a magnetically coupled rodless cylinder slider type design. This advanced model offers a weight reduction of up to 15%, now weighing only 0.96 kg compared to the previous 1.13 kg. Its overall length has been shortened by 15 mm, measuring 240 mm instead of the former 255 mm, making it more compact and efficient. Enhanced durability is achieved through the inclusion of lub-retainers on both the internal and external surfaces of the cylinder tube, ensuring optimal lubrication maintenance. Additionally, the adjustment bolt enhances stroke accuracy and repeatability, making this cylinder an ideal choice for precision applications.
- Piping:
- Both Sides Piping Type
- Bore Size:
- Bore Size 20 mm
- Port Thread Type:
- M Thread,Rc
- Cylinder Stroke:
- Standard Stroke 400 mm
- Adjustment Type:
- With Adjusting Bolt
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
