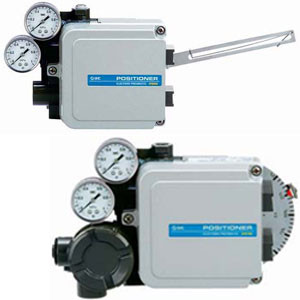

SMC IP8100-031-AGHJ-Q IP8000/8100 Series Electro-Pneumatic Positioner (Lever Type / Rotary Type) Standard
SMC
$1,386.00
The SMC IP8100-031-AGHJ-Q is a versatile electro-pneumatic positioner from the IP8000/8100 Series, designed for both lever and rotary type applications. It features a robust enclosure compliant with JISF8007 IP65 (IEC 60529) standards, ensuring reliable performance in demanding environments. This positioner is equipped with a monitoring function and boasts an explosion-proof structure, making it suitable for hazardous locations. The electro-pneumatic positioner includes a TIIS withstand pressure explosion-proof construction (Exd II BT5) and an ATEX intrinsically safe explosion-proof structure (II 2G Ex ib II CT5/T6). For enhanced functionality, the smart positioner variant offers an ATEX intrinsically safe explosion-proof structure (II 1G Ex ia II CT4/T5/T6 Ga) and supports HART communication, providing seamless integration and control. Ideal for industries requiring precision and safety, this positioner ensures optimal performance and reliability.
- Type:
- Electro-Pneumatic Rotary Type
- Pressure Gauge:
- 1.0MPa
- Construction:
- With Terminal Box(Exsd2BT5) TIIS (Japan) Explosion-Proof Item
- Accessories A:
- With 0.7 Output Restriction Pilot Valve
- Accessories B:
- Compensation Spring (A)
- Accessories C:
- With External Scale Plate
- Accessories D:
- With Opening Current Transmission (4 To 20 Ma DC)/Positive Operation
- Accessories E:
- None (Standard)
- Connection:
- Air:Rc1/4
- CE Marking:
- CE/UKCA-compliant
