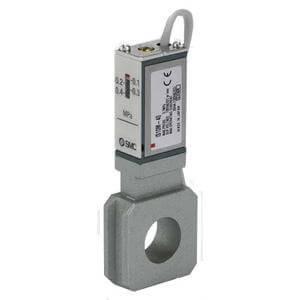

SMC IS10M-50-P pressure switch, reed, modula

(No reviews yet) Write a Review
SKU:
IS10M-50-P
Condition:
New
Size:
50
Options:
Scale Plate Pressure Unit: Both MPa and psi
  • SMC IS10M-50-P pressure switch, reed, modula
  • SMC IS10M-50-P pressure switch, reed, modula
  • SMC - IS10M-50-P - SMC?? IS10M-50-P Reed Pneumatic Pressure Switch, Fixed SI Unit Display, Body Ported, Port Gender: Female
  • SMC IS10M-60-P pressure switch, reed, modula, IS/NIS PRESSURE SW FOR FRL
$53.15

Description

smc's?is10 pressure switch is 16% lighter, and 11% smaller?when compared to the is1000.? the is10 is rohs?compliant and ce marked.? set pressure range is 0.1 to 0.4mpa (optional 0.1 to 0.6 mpa).? also available are the is10m (pressure switch with spacer) and the is10e (pressure switch with piping adapter).

  • for connecting to modular type frl units
  • 100v ac/dc specifications
  • service life: 5 million cycles
  • rohs compliant and ce marked
