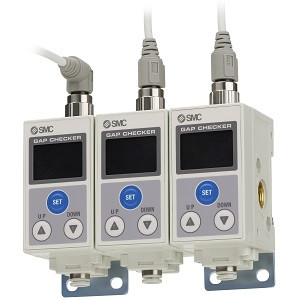

SMC ISA3-HFL-2NB ISA3-L Series 3-Color Display Digital Gap Checker Without Control Unit

SMC ISA3-HFL-2NB ISA3-L Series 3-Color Display Digital Gap Checker Without Control Unit

SMC
SKU:
ISA3-HFL-2NB
Availability:
Factory Stock
$518.00
Condition:
New
Current Stock:
Description

ISA3-L Series 3-Color Display Digital Gap Checker Without Control Unit

  • Monitoring the plac ement condition of the workpiece; Indic ate s failure / abnormality;
  • Double sensor providing improved preventive and predictive maintenance (IoT) based on IO-Link; Process data provides Displayed value,Outlet pressure and Supply pressure value;
  • NPN/PNP Switch Function;
  • 3-Screen Display (Setting);
  • Window Comparator Type;
  • Zero cut-off range can be changed
    • Additional Information
    Rated Distance Range:
    0.05 To 0.30 mm
    Piping Specification:
    Supply Side:G1/8
    Detection Side:G1/8 Output Specifications:
    IO-Link: Switch Output 1 + Switch Output 2 (Switch Output: NPN Or PNP Switching Type)
    Unit Specifications Of Pressure Value:
    With Unit Conversion Function
    Stations:
    2 Stations
    Option 1 (Cable):
    None
    Option 2 (Bracket):
    With Bracket
